GigaCore 16tf

New Product

10 Gb Ethernet switch for professional touring applications.

10Gb Network switch for converged AV networks

The GigaCore 16tf is an up to 10 Gigabit Ethernet switch for professional touring applications in lighting, audio and videoand provides ruggedised connectivity at the front as well as at the rear of the rack to accomodate multiple edge devices in a flexible way with several fiber and copper connector options from factory.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged network, allowing multiple applications to co-exist on the same network.

Application Diagram

Schedule a Demo

Accessories

Luminex's Araneo Software

Luminex

Araneo

Visualize your data flow with confidence. Collect Inspect Connect Providing a clear, intuitive, and graphical map of complex network configurations.

Video Networking

Lighting Networking

Audio Networking

Software and Apps

Product Videos

Watch tutorials and use cases to see this product in action.

GigaCore 16tf Product Overview

GigaCore 16tf

Product Information

10Gb Connectivity

10Gb connectivity allows full network convergence of lighting control, audio, intercom, and video.

1Gb Connectivity

A range of 1Gb versions is available as well with identical PoE and redundancy features. For more information, please see specifications and product codes below.

PoE++

PoE++ implementation on every copper port allows you to connect any PoE device available today.

Today’s PoE standards (802.3af, 802.3at and 802.3bt) are all met.
GigaCore 16tf can directly drive almost any IP PTZ camera, network node or PoE powered loudspeaker on the market.

AV validated for real applications

GigaCore switches are fully validated in real-world applications with major brands in the AV industry for different protocols, including NDI™, Dante™, AVB/MILAN, RAVENNA/AES67, ST-2110, IPMX, MA-Net, and many more.

We don’t just approve against a protocol but actually test it. Because of real world application validation and interoperability testing, we understand the applications and make sure you can deploy our product with confidence.

Luminex support team really speaks your language and has a vast amount of AV knowledge built up, not just from talking protocols but mainly from working with you and living through your real application network challenges.

Quick overview

  • Easy to configure with WebUI & ARANEO.

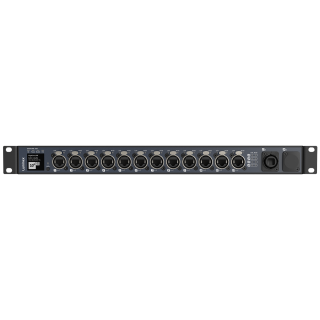

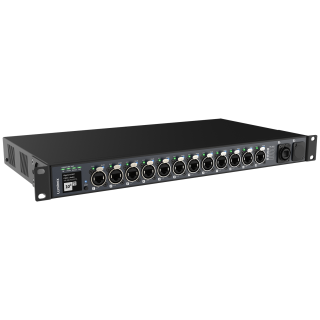

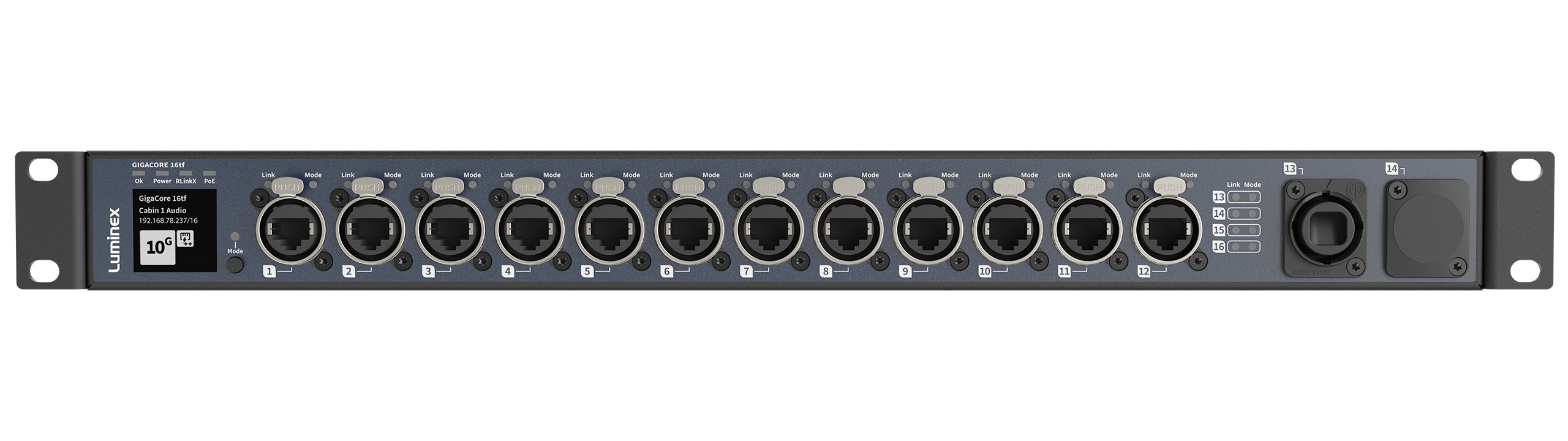

  • 12 x Rugged 1Gbps front-side connectivity for flexible field deployment.

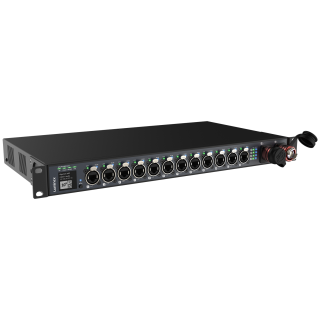

  • 4 x 10Gbps connection. OpticalCON, Fiberfox or

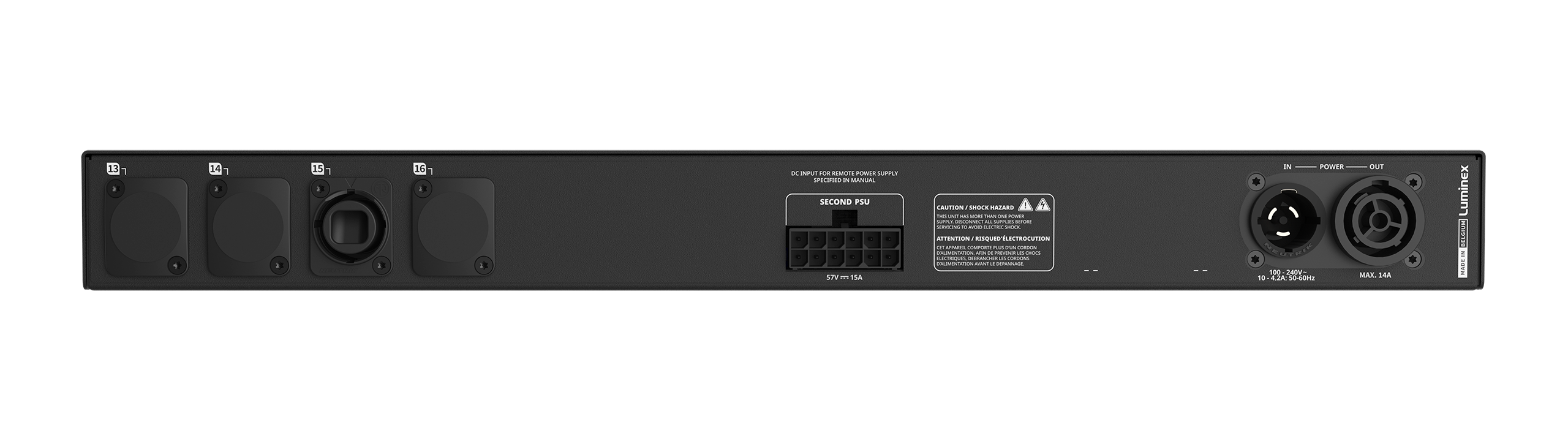

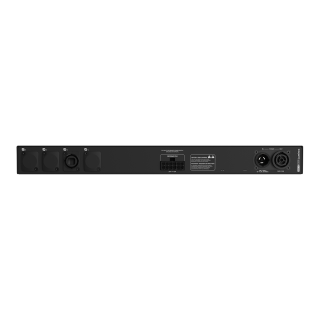

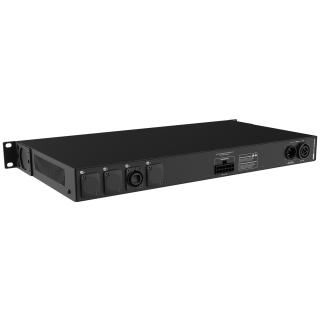

    EtherCON in front and/or rear.
  • Pre-configured for ProAV – no compromises required.
  • Pre-defined Groups (VLANs), Custom Groups (VLANs), and Custom Trunk technology with matching color-coded LED indicators per port.
  • PoE++ support on all copper ports.
  • Dedicated connection for the RPSU 5580, enabling redundant power or increased PoE budget.

GigaCore 16tf

Robust, yet silent design

An all-metal housing allows you to use GigaCore in any AV environment.
Fans are speed controlled to have minimal noise impact and guarantee a long-life operation.
This allows you to place the GigaCore in the most quiet environments like theaters and studio’s.

GigaCore 16tf

Manage and monitor your complete system with Araneo

For optimised consistency, all GigaCore switches can be managed with a single network-wide tool: AraneoAraneo’s online mode shows everything you need to know about the status of your GigaCore network. Data streams and topology are visualized as are the port status of every GigaCore.

Monitor your network with confidence and act before the show gets interrupted!

In offline mode, Araneo lets you plan the complete network topology and GigaCore settings in advance. Reducing network commissioning time to a mere click of a button.Araneo Health Check proactively checks vital parameters of your network and ensures consistency throughout.

Discover ARANEO

Intuitive web UI

The built-in web UI allows you to adjust the settings in an intuitive way. Assigning Groups (VLANS) to ports, creating trunks or adjusting other port- and PoE settings can be done  on the fly and  the status page gives you an overview of the complete switch at a glance. The toolbox page allows management of profiles and lets you upgrade firmware easily.

Consistency in LED colours

Consistent Group (VLAN) colours in the web UI, in Araneo and on the front panel LED’s.
  • Most suitable applications: Touring applications
  • PoE: PoE++ Optional
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes
  • Profile manager: Yes
  • Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
  • MAC address table: 16384 entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput 64 Byte:
    • 23.81Mpps (1G version)
    • 77,38Mpps (10G version)
  • Switching capacity: 104Gbps
  • Jumbo frames: MTU up to 12000
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
  • Ethernet connectivity: 12x Gigabit (10/100/1000 BASE-T) EtherCon connectors on front panel
  • Fiber connectivity: (2x 10 Gbps / 1 Gbps rugged fiber connectors on front panel, independent from other ports AND 2x 10 Gbps / 1 Gbps rugged fiber connectors on rear panel, independent from other ports) OR 4x 10 Gbps / 1 Gbps rugged fiber connectors on rear panel, independent from other ports *Option to install copper modules and connectors instead of fiber
  • Ethernet port speed: 1Gbps
  • Serial: No
  • Power connectivity: 1 x PowerCON True 1 in/out
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Max 15,5W (non-PoE model) – Max 495W (PoE model)
  • Fuse: NA
  • Backup power input: Yes (PoE models only)
  • Backup PoE power input: Yes
  • PoE: PoE++ Optional
  • Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet, HogNet, RTTrPL (BlackTraX), IPMX, NDI, IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN, IEEE 802.1as (gPTP) and more…
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB, IETF RFC2710, IETF RFC3810
  • Display and jog: No
  • NFC: No
  • Configuration: Through the built-in web server, Network wide configuration through Araneo software
  • Status LEDs:
    • Global status LEDs: Device, power, PoE power and mode
    • Port status LEDs: PoE, groups, link/activity and port speed
    • Dark mode available
  • Colored RGB LEDs: Yes
  • Mounting: Rack
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 482 x 204,1 x 44 mm (19″ x 8.03″ x 1,73″)
  • Weight: 4kg (device only) 4.6kg (packaged)
  • Packaging: 550 mm x 335mm x 68 mm
  • Environment:
    • Operating temperature: 0 to +50°C (0 to +45°C – with RPSU 5580 connected)
    • Storage temperature: -40 to +70 °C
    • Humidity (non condensing): 5 to 95% RH
  • Ingress Protection:
  • Noise level @1m: TBC
  • BTU: TBC
  • Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS, AVB/MILAN
  • Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
  • Product codes:
    • 10Gb models:
    • LU 01 00100-10G-POE-0/0/ETC/ETC/ETC/ETC / GigaCore 16tf 10G POE 0/0/ETC/ETC/ETC/ETC
    • LU 01 00100-10G-POE-ETC/ETC/0/0/ETC/ETC / GigaCore 16tf 10G POE ETC/ETC/0/0/ETC/ETC
    • LU 01 00100-10G-0/0/ETC/ETC/ETC/ETC / GigaCore 16tf 10G 0/0/ETC/ETC/ETC/ETC
    • LU 01 00100-10G-ETC/ETC/0/0/ETC/ETC / GigaCore 16tf 10G ETC/ETC/0/0/ETC/ETC
    • LU 01 00100-10G-POE-NDM/NDM/0/0/NDM/NDM / GigaCore 16tf 10G POE NDM/NDM/0/0/NDM/NDM
    • LU 01 00100-10G-POE-0/0/NDM/NDM/NDM/NDM / GigaCore 16tf 10G POE 0/0/NDM/NDM/NDM/NDM
    • LU 01 00100-10G-NDM/NDM/0/0/NDM/NDM / GigaCore 16tf 10G NDM/NDM/0/0/NDM/NDM
    • LU 01 00100-10G-0/0/NDM/NDM/NDM/NDM / GigaCore 16tf 10G 0/0/NDM/NDM/NDM/NDM
    • LU 01 00100-10G-POE-NDM/NDM/0/0/ETC/ETC / GigaCore 16tf 10G POE NDM/NDM/0/0/ETC/ETC
    • LU 01 00100-10G-POE-ETC/ETC/0/0/NDM/NDM / GigaCore 16tf 10G POE ETC/ETC/0/0/NDM/NDM
    • LU 01 00100-10G-NDM/NDM/0/0/ETC/ETC / GigaCore 16tf 10G NDM/NDM/0/0/ETC/ETC
    • LU 01 00100-10G-ETC/ETC/0/0/NDM/NDM / GigaCore 16tf 10G ETC/ETC/0/0/NDM/NDM
    • LU 01 00100-10G-POE-NDS/NDS/0/0/NDS/NDS / GigaCore 16tf 10G POE NDS/NDS/0/0/NDS/NDS
    • LU 01 00100-10G-POE-0/0/NDS/NDS/NDS/NDS / GigaCore 16tf 10G POE 0/0/NDS/NDS/NDS/NDS
    • LU 01 00100-10G-NDS/NDS/0/0/NDS/NDS / GigaCore 16tf 10G NDS/NDS/0/0/NDS/NDS
    • LU 01 00100-10G-0/0/NDS/NDS/NDS/NDS / GigaCore 16tf 10G 0/0/NDS/NDS/NDS/NDS
    • LU 01 00100-10G-POE-NDS/NDS/0/0/ETC/ETC / GigaCore 16tf 10G POE NDS/NDS/0/0/ETC/ETC
    • LU 01 00100-10G-POE-ETC/ETC/0/0/NDS/NDS / GigaCore 16tf 10G POE ETC/ETC/0/0/NDS/NDS
    • LU 01 00100-10G-NDS/NDS/0/0/ETC/ETC / GigaCore 16tf 10G NDS/NDS/0/0/ETC/ETC
    • LU 01 00100-10G-ETC/ETC/0/0/NDS/NDS / GigaCore 16tf 10G ETC/ETC/0/0/NDS/NDS
    • LU 01 00100-10G-POE-NQM/0M/0/0/NQM/0M / GigaCore 16tf 10G POE NQM/0M/0/0/NQM/0M
    • LU 01 00100-10G-POE-0/0/NQM/0M/NQM/0M / GigaCore 16tf 10G POE 0/0/NQM/0M/NQM/0M
    • LU 01 00100-10G-NQM/0M/0/0/NQM/0M / GigaCore 16tf 10G NQM/0M/0/0/NQM/0M
    • LU 01 00100-10G-0/0/NQM/0M/NQM/0M / GigaCore 16tf 10G 0/0/NQM/0M/NQM/0M
    • LU 01 00100-10G-POE-NQM/0M/0/0/ETC/ETC / GigaCore 16tf 10G POE NQM/0M/0/0/ETC/ETC
    • LU 01 00100-10G-POE-ETC/ETC/0/0/NQM/0M / GigaCore 16tf 10G POE ETC/ETC/0/0/NQM/0M
    • LU 01 00100-10G-NQM/0M/0/0/ETC/ETC / GigaCore 16tf 10G NQM/0M/0/0/ETC/ETC
    • LU 01 00100-10G-ETC/ETC/0/0/NQM/0M / GigaCore 16tf 10G ETC/ETC/0/0/NQM/0M
    • LU 01 00100-10G-POE-NQS/0S/0/0/NQS/0S / GigaCore 16tf 10G POE NQS/0S/0/0/NQS/0S
    • LU 01 00100-10G-POE-0/0/NQS/0S/NQS/0S / GigaCore 16tf 10G POE 0/0/NQS/0S/NQS/0S
    • LU 01 00100-10G-NQS/0S/0/0/NQS/0S / GigaCore 16tf 10G NQS/0S/0/0/NQS/0S
    • LU 01 00100-10G-0/0/NQS/0S/NQS/0S / GigaCore 16tf 10G 0/0/NQS/0S/NQS/0S
    • LU 01 00100-10G-POE-NQS/0S/0/0/ETC/ETC / GigaCore 16tf 10G POE NQS/0S/0/0/ETC/ETC
    • LU 01 00100-10G-POE-ETC/ETC/0/0/NQS/0S / GigaCore 16tf 10G POE ETC/ETC/0/0/NQS/0S
    • LU 01 00100-10G-NQS/0S/0/0/ETC/ETC / GigaCore 16tf 10G NQS/0S/0/0/ETC/ETC
    • LU 01 00100-10G-ETC/ETC/0/0/NQS/0S / GigaCore 16tf 10G ETC/ETC/0/0/NQS/0S
    • LU 01 00100-10G-POE-F2S/F2S/0/0/F2S/F2S / GigaCore 16tf 10G POE F2S/F2S/0/0/F2S/F2S
    • LU 01 00100-10G-POE-0/0/F2S/F2S/F2S/F2S / GigaCore 16tf 10G POE 0/0/F2S/F2S/F2S/F2S
    • LU 01 00100-10G-F2S/F2S/0/0/F2S/F2S / GigaCore 16tf 10G F2S/F2S/0/0/F2S/F2S
    • LU 01 00100-10G-0/0/F2S/F2S/F2S/F2S / GigaCore 16tf 10G 0/0/F2S/F2S/F2S/F2S
    • LU 01 00100-10G-POE-F2S/F2S/0/0/ETC/ETC / GigaCore 16tf 10G POE F2S/F2S/0/0/ETC/ETC
    • LU 01 00100-10G-POE-ETC/ETC/0/0/F2S/F2S / GigaCore 16tf 10G POE ETC/ETC/0/0/F2S/F2S
    • LU 01 00100-10G-F2S/F2S/0/0/ETC/ETC / GigaCore 16tf 10G F2S/F2S/0/0/ETC/ETC
    • LU 01 00100-10G-ETC/ETC/0/0/F2S/F2S / GigaCore 16tf 10G ETC/ETC/0/0/F2S/F2S
    • LU 01 00100-10G-POE-F4S/0S/0/0/F4S/0S / GigaCore 16tf 10G POE F4S/0S/0/0/F4S/0S
    • LU 01 00100-10G-POE-0/0/F4S/0S/F4S/0S / GigaCore 16tf 10G POE 0/0/F4S/0S/F4S/0S
    • LU 01 00100-10G-F4S/0S/0/0/F4S/0S / GigaCore 16tf 10G F4S/0S/0/0/F4S/0S
    • LU 01 00100-10G-0/0/F4S/0S/F4S/0S / GigaCore 16tf 10G 0/0/F4S/0S/F4S/0S
    • LU 01 00100-10G-POE-F4S/0S/0/0/ETC/ETC / GigaCore 16tf 10G POE F4S/0S/0/0/ETC/ETC
    • LU 01 00100-10G-POE-ETC/ETC/0/0/F4S/0S / GigaCore 16tf 10G POE ETC/ETC/0/0/F4S/0S
    • LU 01 00100-10G-F4S/0S/0/0/ETC/ETC / GigaCore 16tf 10G F4S/0S/0/0/ETC/ETC
    • LU 01 00100-10G-ETC/ETC/0/0/F4S/0S / GigaCore 16tf 10G ETC/ETC/0/0/F4S/0S
    • LU 01 00100-10G-POE-0/0/LCM/LCM/LCM/LCM / GigaCore 16tf 10G POE 0/0/LCM/LCM/LCM/LCM
    • LU 01 00100-10G-0/0/LCM/LCM/LCM/LCM / GigaCore 16tf 10G 0/0/LCM/LCM/LCM/LCM
    • LU 01 00100-10G-POE-0/0/LCS/LCS/LCS/LCS / GigaCore 16tf 10G POE 0/0/LCS/LCS/LCS/LCS
    • LU 01 00100-10G-0/0/LCS/LCS/LCS/LCS / GigaCore 16tf 10G 0/0/LCS/LCS/LCS/LCS
    • 1Gb models:
    • LU 01 00100-1G-POE-0/0/ETC/ETC/ETC/ETC / GigaCore 16tf 1G POE 0/0/ETC/ETC/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/ETC/ETC / GigaCore 16tf 1G POE ETC/ETC/0/0/ETC/ETC
    • LU 01 00100-1G-0/0/ETC/ETC/ETC/ETC / GigaCore 16tf 1G 0/0/ETC/ETC/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/ETC/ETC / GigaCore 16tf 1G ETC/ETC/0/0/ETC/ETC
    • LU 01 00100-1G-POE-NDM/NDM/0/0/NDM/NDM / GigaCore 16tf 1G POE NDM/NDM/0/0/NDM/NDM
    • LU 01 00100-1G-POE-0/0/NDM/NDM/NDM/NDM / GigaCore 16tf 1G POE 0/0/NDM/NDM/NDM/NDM
    • LU 01 00100-1G-NDM/NDM/0/0/NDM/NDM / GigaCore 16tf 1G NDM/NDM/0/0/NDM/NDM
    • LU 01 00100-1G-0/0/NDM/NDM/NDM/NDM / GigaCore 16tf 1G 0/0/NDM/NDM/NDM/NDM
    • LU 01 00100-1G-POE-NDM/NDM/0/0/ETC/ETC / GigaCore 16tf 1G POE NDM/NDM/0/0/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/NDM/NDM / GigaCore 16tf 1G POE ETC/ETC/0/0/NDM/NDM
    • LU 01 00100-1G-NDM/NDM/0/0/ETC/ETC / GigaCore 16tf 1G NDM/NDM/0/0/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/NDM/NDM / GigaCore 16tf 1G ETC/ETC/0/0/NDM/NDM
    • LU 01 00100-1G-POE-NDS/NDS/0/0/NDS/NDS / GigaCore 16tf 1G POE NDS/NDS/0/0/NDS/NDS
    • LU 01 00100-1G-POE-0/0/NDS/NDS/NDS/NDS / GigaCore 16tf 1G POE 0/0/NDS/NDS/NDS/NDS
    • LU 01 00100-1G-NDS/NDS/0/0/NDS/NDS / GigaCore 16tf 1G NDS/NDS/0/0/NDS/NDS
    • LU 01 00100-1G-0/0/NDS/NDS/NDS/NDS / GigaCore 16tf 1G 0/0/NDS/NDS/NDS/NDS
    • LU 01 00100-1G-POE-NDS/NDS/0/0/ETC/ETC / GigaCore 16tf 1G POE NDS/NDS/0/0/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/NDS/NDS / GigaCore 16tf 1G POE ETC/ETC/0/0/NDS/NDS
    • LU 01 00100-1G-NDS/NDS/0/0/ETC/ETC / GigaCore 16tf 1G NDS/NDS/0/0/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/NDS/NDS / GigaCore 16tf 1G ETC/ETC/0/0/NDS/NDS
    • LU 01 00100-1G-POE-NQM/0M/0/0/NQM/0M / GigaCore 16tf 1G POE NQM/0M/0/0/NQM/0M
    • LU 01 00100-1G-POE-0/0/NQM/0M/NQM/0M / GigaCore 16tf 1G POE 0/0/NQM/0M/NQM/0M
    • LU 01 00100-1G-NQM/0M/0/0/NQM/0M / GigaCore 16tf 1G NQM/0M/0/0/NQM/0M
    • LU 01 00100-1G-0/0/NQM/0M/NQM/0M / GigaCore 16tf 1G 0/0/NQM/0M/NQM/0M
    • LU 01 00100-1G-POE-NQM/0M/0/0/ETC/ETC / GigaCore 16tf 1G POE NQM/0M/0/0/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/NQM/0M / GigaCore 16tf 1G POE ETC/ETC/0/0/NQM/0M
    • LU 01 00100-1G-NQM/0M/0/0/ETC/ETC / GigaCore 16tf 1G NQM/0M/0/0/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/NQM/0M / GigaCore 16tf 1G ETC/ETC/0/0/NQM/0M
    • LU 01 00100-1G-POE-NQS/0S/0/0/NQS/0S / GigaCore 16tf 1G POE NQS/0S/0/0/NQS/0S
    • LU 01 00100-1G-POE-0/0/NQS/0S/NQS/0S / GigaCore 16tf 1G POE 0/0/NQS/0S/NQS/0S
    • LU 01 00100-1G-NQS/0S/0/0/NQS/0S / GigaCore 16tf 1G NQS/0S/0/0/NQS/0S
    • LU 01 00100-1G-0/0/NQS/0S/NQS/0S / GigaCore 16tf 1G 0/0/NQS/0S/NQS/0S
    • LU 01 00100-1G-POE-NQS/0S/0/0/ETC/ETC / GigaCore 16tf 1G POE NQS/0S/0/0/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/NQS/0S / GigaCore 16tf 1G POE ETC/ETC/0/0/NQS/0S
    • LU 01 00100-1G-NQS/0S/0/0/ETC/ETC / GigaCore 16tf 1G NQS/0S/0/0/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/NQS/0S / GigaCore 16tf 1G ETC/ETC/0/0/NQS/0S
    • LU 01 00100-1G-POE-F2M/F2M/0/0/F2M/F2M / GigaCore 16tf 1G POE F2M/F2M/0/0/F2M/F2M
    • LU 01 00100-1G-POE-0/0/F2M/F2M/F2M/F2M / GigaCore 16tf 1G POE 0/0/F2M/F2M/F2M/F2M
    • LU 01 00100-1G-F2M/F2M/0/0/F2M/F2M / GigaCore 16tf 1G F2M/F2M/0/0/F2M/F2M
    • LU 01 00100-1G-0/0/F2M/F2M/F2M/F2M / GigaCore 16tf 1G 0/0/F2M/F2M/F2M/F2M
    • LU 01 00100-1G-POE-F2M/F2M/0/0/ETC/ETC / GigaCore 16tf 1G POE F2M/F2M/0/0/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/F2M/F2M / GigaCore 16tf 1G POE ETC/ETC/0/0/F2M/F2M
    • LU 01 00100-1G-F2M/F2M/0/0/ETC/ETC / GigaCore 16tf 1G F2M/F2M/0/0/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/F2M/F2M / GigaCore 16tf 1G ETC/ETC/0/0/F2M/F2M
    • LU 01 00100-1G-POE-F2S/F2S/0/0/F2S/F2S / GigaCore 16tf 1G POE F2S/F2S/0/0/F2S/F2S
    • LU 01 00100-1G-POE-0/0/F2S/F2S/F2S/F2S / GigaCore 16tf 1G POE 0/0/F2S/F2S/F2S/F2S
    • LU 01 00100-1G-F2S/F2S/0/0/F2S/F2S / GigaCore 16tf 1G F2S/F2S/0/0/F2S/F2S
    • LU 01 00100-1G-0/0/F2S/F2S/F2S/F2S / GigaCore 16tf 1G 0/0/F2S/F2S/F2S/F2S
    • LU 01 00100-1G-POE-F2S/F2S/0/0/ETC/ETC / GigaCore 16tf 1G POE F2S/F2S/0/0/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/F2S/F2S / GigaCore 16tf 1G POE ETC/ETC/0/0/F2S/F2S
    • LU 01 00100-1G-F2S/F2S/0/0/ETC/ETC / GigaCore 16tf 1G F2S/F2S/0/0/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/F2S/F2S / GigaCore 16tf 1G ETC/ETC/0/0/F2S/F2S
    • LU 01 00100-1G-POE-F4M/0M/0/0/F4M/0M / GigaCore 16tf 1G POE F4M/0M/0/0/F4M/0M
    • LU 01 00100-1G-POE-0/0/F4M/0M/F4M/0M / GigaCore 16tf 1G POE 0/0/F4M/0M/F4M/0M
    • LU 01 00100-1G-F4M/0M/0/0/F4M/0M / GigaCore 16tf 1G F4M/0M/0/0/F4M/0M
    • LU 01 00100-1G-0/0/F4M/0M/F4M/0M / GigaCore 16tf 1G 0/0/F4M/0M/F4M/0M
    • LU 01 00100-1G-POE-F4M/0M/0/0/ETC/ETC / GigaCore 16tf 1G POE F4M/0M/0/0/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/F4M/0M / GigaCore 16tf 1G POE ETC/ETC/0/0/F4M/0M
    • LU 01 00100-1G-F4M/0M/0/0/ETC/ETC / GigaCore 16tf 1G F4M/0M/0/0/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/F4M/0M / GigaCore 16tf 1G ETC/ETC/0/0/F4M/0M
    • LU 01 00100-1G-POE-F4S/0S/0/0/F4S/0S / GigaCore 16tf 1G POE F4S/0S/0/0/F4S/0S
    • LU 01 00100-1G-POE-0/0/F4S/0S/F4S/0S / GigaCore 16tf 1G POE 0/0/F4S/0S/F4S/0S
    • LU 01 00100-1G-F4S/0S/0/0/F4S/0S / GigaCore 16tf 1G F4S/0S/0/0/F4S/0S
    • LU 01 00100-1G-0/0/F4S/0S/F4S/0S / GigaCore 16tf 1G 0/0/F4S/0S/F4S/0S
    • LU 01 00100-1G-POE-F4S/0S/0/0/ETC/ETC / GigaCore 16tf 1G POE F4S/0S/0/0/ETC/ETC
    • LU 01 00100-1G-POE-ETC/ETC/0/0/F4S/0S / GigaCore 16tf 1G POE ETC/ETC/0/0/F4S/0S
    • LU 01 00100-1G-F4S/0S/0/0/ETC/ETC / GigaCore 16tf 1G F4S/0S/0/0/ETC/ETC
    • LU 01 00100-1G-ETC/ETC/0/0/F4S/0S / GigaCore 16tf 1G ETC/ETC/0/0/F4S/0S
    • LU 01 00100-1G-POE-0/0/LCM/LCM/LCM/LCM / GigaCore 16tf 1G POE 0/0/LCM/LCM/LCM/LCM
    • LU 01 00100-1G-0/0/LCM/LCM/LCM/LCM / GigaCore 16tf 1G 0/0/LCM/LCM/LCM/LCM
    • LU 01 00100-1G-POE-0/0/LCS/LCS/LCS/LCS / GigaCore 16tf 1G POE 0/0/LCS/LCS/LCS/LCS
    • LU 01 00100-1G-0/0/LCS/LCS/LCS/LCS / GigaCore 16tf 1G 0/0/LCS/LCS/LCS/LCS

Disclaimer: Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer’s web page for the most up-to-date specifications and product details. www.luminex.be

For the most up-to-date Software and Firmware, visit www.luminex.be/support-2

GigaCore-16tf, front

Connect

See this product in action

Schedule a Demo

You May Also Like

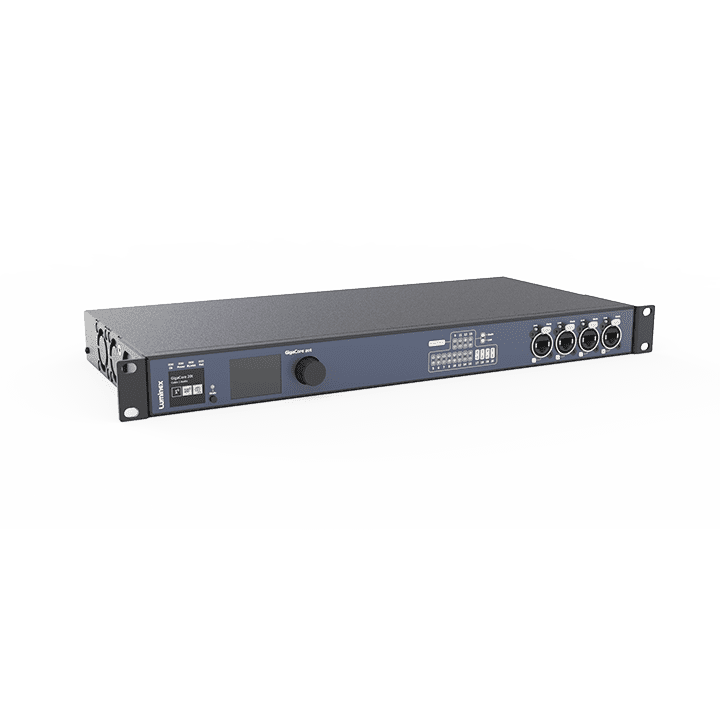

A 1U rack-mountable audio device with a display screen, control knob, button panel, and four large audio/video input/output ports on the front panel, set against a white background.
A 1U rack-mountable audio device with a display screen, control knob, button panel, and four large audio/video input/output ports on the front panel, set against a white background.

GigaCore 20t

Video Networking

Lighting Networking

Amplification

Audio Networking

Dante

Lighting Control

POE Power
