Chroma-Q®

Inspire XT™ RGBW

Best Seller

The Chroma-Q® Inspire XT™ LED house light is the most powerful fixture in the range, delivering up to 9,500 lumens. Including all the features of the Inspire™ & Inspire Mini™ with twice the output, it is ideal for situations that require the same high-quality white and coloured lighting with even more output. In addition, it uses some of the innovative core technologies found in other award-winning Chroma-Q® products.

All Inspire models in the range provide a choice of beautiful whites, soft pastels and bold saturates —all from one fixture. By incorporating industry standard DMX-512 control, the Inspire is able to integrate seamlessly with an existing DMX infrastructure and can be controlled by any DMX-supported lighting console. With fully homogenised colour mixing and a choice of three different beam spreads, the Inspire XT™ provides an excellent selection of stunning mixed colours and ‘true’ whites, with no unsightly colour separation shadows. It also features an energy-efficient LED design providing reduced maintenance and running costs.

Key Features

  • Fully homogenised beam
  • High-quality white lighting and RGBW colour-mixing
  • Beautiful whites, soft pastels and bold saturates – all from a single fixture
  • Ideal for house light replacements
  • Seamlessly integrate stage & house lighting
  • Convection cooled for quiet operation
  • Extremely smooth, uniform output
  • Theatrical grade dimming
  • Powerful – up to 9,500 lumens
  • Holographic spread lenses included allowing for three beam spreads
  • Adjustable 1,000K to 10,000K CCT
  • High CRI of 90
  • Exceptional fixture-to-fixture consistency
  • Made in North America
  • Built-in power supply
  • Low energy consumption

This product replaces the Inspire™ RGBW.

Schedule a Demo

Accessories

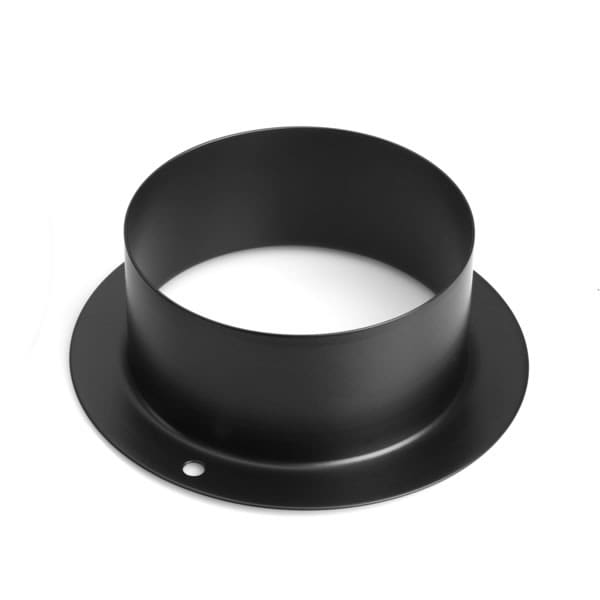

A black, cylindrical metal flange with a wide, flat circular base and a small hole near the edge, often used in audio or lighting setups, photographed on a white background.

Chroma-Q®

Top Hat/Snoot for Inspire™

Top Hat/Snoot for Inspire™ helps to control light spill and reduce the viewing angle…

Lighting Accessories

A black cylindrical LED stage light with a grated exterior casing and a handle for mounting or adjustment, perfect for professional lighting setups, shown against a white background.

Chroma-Q®

Yoke Mount Kit for Inspire™

Yoke Mount Kit for Inspire™ helps with mounting the fixture in unusual settings…

Lighting Accessories

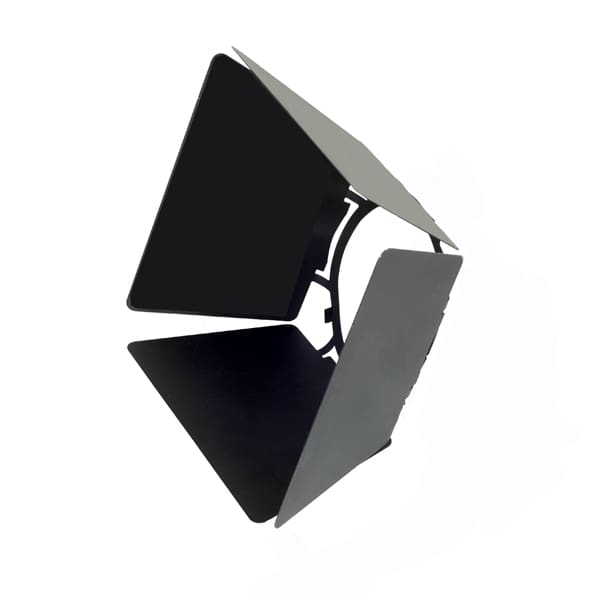

A black metal barn door light modifier with four adjustable flaps, used to control the direction and shape of lighting in photography or video production.

Chroma-Q®

Barndoor for Inspire™

Barndoor for Inspire is an accessory that adjusts the shape of the beam of light.

Lighting Accessories

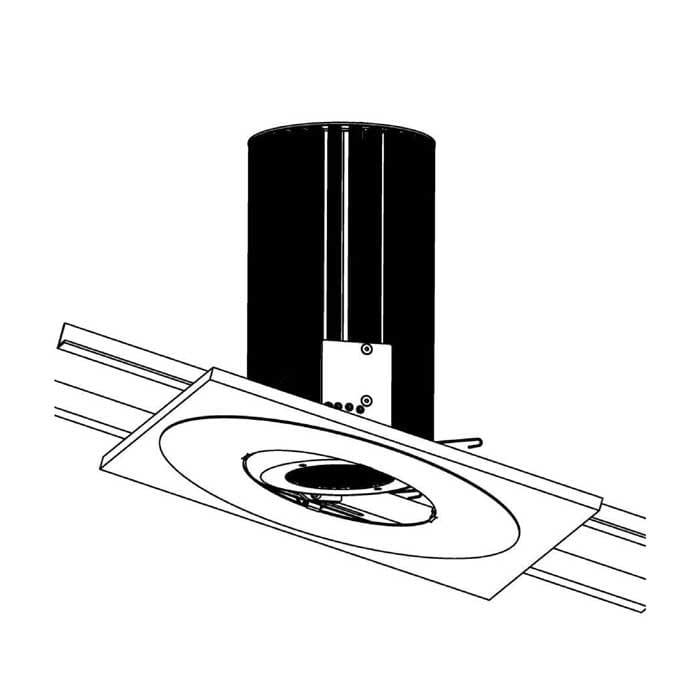

Black and white line drawing of a recessed lighting can fixture installed in a ceiling, featuring a cylindrical housing and a rectangular trim plate.

Chroma-Q®

Inspire™ Blind Sloped Ceiling Kit – 20 TO 30 Degree Angle

An accessory that allows for installation on drywall or suspended ceilings.

Lighting Accessories

Black and white line drawing of a recessed ceiling light housing with a circular canister and rectangular trim, mounted between two metal support bars—ideal for enhancing video lighting setups.

Chroma-Q®

Inspire™ Blind Sloped Ceiling Kit – 0 TO 15 Degree Angle

An accessory kit that allows for installation of the fixture on drywall or suspended ceilings.

Lighting Accessories

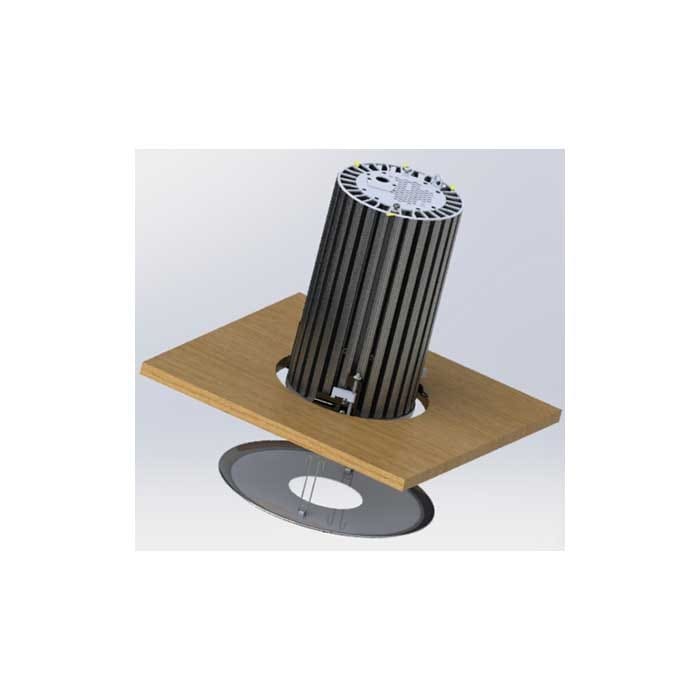

A cylindrical black metal device with vertical fins, commonly used in lighting or audio setups, is mounted through a square brown panel with a round metallic plate beneath it, against a plain white background.

Chroma-Q®

Inspire™ Blind Ceiling Mount Kit

Allows the Inspire™ fixture to be securely installed and supported on drywall.

Lighting Accessories

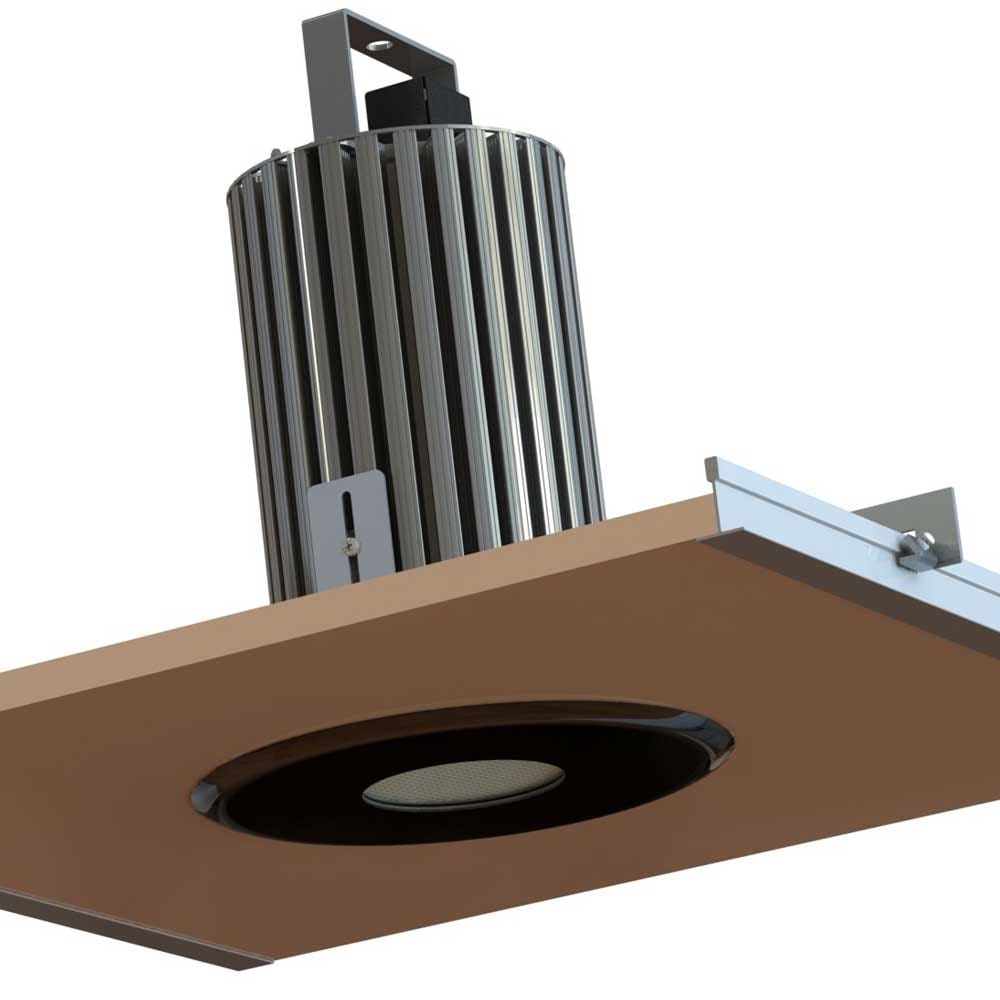

A recessed LED downlight fixture with a metallic cylindrical heat sink mounted above a brown ceiling panel, featuring a circular black trim around the light opening—ideal for integrated audio, video, and lighting setups.

Chroma-Q®

Inspire Suspended Ceiling Bracket with Trim Ring

Inspire Suspended Ceiling Bracket with Trim Ring is available in black or white. Product Codes: CQ632-9060 – Black CQ632-9061 –…

Lighting Accessories

Product Videos

Watch tutorials and use cases to see this product in action.

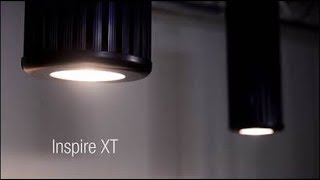

Chroma-Q® Inspire XT™ RGBW LED House Light

Chroma-Q Color Force II™ & Inspire™

Chroma-Q® Inspire XT™ RGBW LED House Light

Inspire XT™ RGBW

Product Information

Multi-Purpose

Fusing entertainment, theatrical and architectural lighting capabilities, the Inspire™ has the ability to seamlessly transform the look and feel of a performance venue, themed retail space, or house of worship.

A Truly Creative Tool

Whether used in entertainment, architectural, or house of worship context, the Inspire™ provides designers with a tool to create environments that seamlessly transcend the physical barrier between the stage and audience through the creative use of light and colour. With Inspire, effects can range from a subtle shift in colour temperature to bold and dynamic colour changes.

Colour

With RGBW colour mixing providing a high CRI of up to 90, the Inspire can achieve extremely accurate colour matching.

Convection Cooled

Inspire™ fixtures are passively cooled and have no fans or fan noise for quiet operation. Their low energy consumption means that they generate low amounts of heat.

DMX-512 Control

Using the Inspire™ house light’s DMX-512 input, it is now possible to seamlessly map ceiling lighting, introducing gorgeous soft colour effects and warm amber looks to engage and captivate the room.

Camera Friendly

With an adjustable frequency from 1,200 – 9,600Hz, the Inspire™ house light is extremely camera-friendly and can be adjusted to eliminate camera flicker and lens glare.

Optics & Dimming

The Inspire’s custom optical design provides a smooth, uniform output, matched by theatrical grade dimming.

Product Code CHINHLRGBWXT / CHINHLRGBWXTW / CHINHLRGBWA..
Net Dimensions (WxHxD) 181mm x 557mm x 181mm / 7″ x 22″ x 7″
Net Weight 7.5 kg / 16.5 lbs
Shipping Dimensions (WxHxD) 305mm x 661mm x 305mm / 12″ x 26″ x 12″
Shipping Weight 9.5 kg / 21 lbs
Power & Connections
Power Supply Built-in
Power Input Rating 100-240V AC 50-60Hz 120VA
Power Factor 0.9
Power Consumption 135W @230W (Maximum Intensity) 7.5W @230W (Stand-By)
Addressing 135W @240W (Maximum Intensity) 7.5W @240W (Stand-By)
Residual current (max) 0.49mA
Idle Power Consumption 6.2 W @110V, 7.5W @220V
Power Connectors In/Out Terminal Block: plug-in screw connector (Input only)
Data Connector In/Out Terminal Block: plug-in screw connector
Addressing: XLR 5 Pin
Max cable run N/A
Operating Temperature 0°C to 40°C
Control Protocol ANSI E1.11 USITT DMX 512-A
Cooling System Convection
Construction Anodised aluminium extrusion
Colour Black / White
Built-In Hardware Mounting bracket (12.7mm / 1/2″ diameter hole)
IP Rating IP20
Approvals CISPR 22/EN55022 & CISPR 24/EN55024, ICES-003 Issue 4:2004 / FCC Part 15 Subpart B:2010, CSA C22.2 No. 166-M1983: R2008, UL 1573:2003 (R2010), IEC 60598-2-17
Earth leakage 0.49mA
Control & Photometrics
Control Modes RGBW Single (up to 4 ch x fixture count in system), RGBW Output (4 ch per output – 4, 8 or 12 ch), Tungsten (1 ch per data output), 0-10V, Look Recall, Alarm, Emergency
Addressing: 7 channels fxHSI, 5 channels sRGBW, 3 channels HSI, 4 channels RGBW, 1 channel Look sel, Mastr StndAlon, Slave StndAlon
Dimming Curve Theatrical
Variable Effects Engine Yes
Effects Parameters Colour speed, range, step, intensity effects
Hot Lumen Output Up to 9,500
Optics Fully homogenised
Beam Angle Approx 32° (Narrow lens), Approx 42° (Medium lens), Approx 65° (Wide lens)
Beam Distribution Symmetrical direct illumination
CCT Adjustable 1,000 – 10,000K
Colour Gamut Performance enhanced
CRI 90
TLCI 70
Sound level 32 db
Lamp Life L70 at 50,000 hours
  • CHINTHB: Top Hat/Snoot for Inspire (Black)
  • CHINTHW: Top Hat/Snoot for Inspire (White)
  • CHINYK: Yoke Mount Kit for Inspire (Black)
  • CHINYKW: Yoke Mount Kit for Inspire (White)
  • CHINBDB: Barndoor for Inspire (Black)
  • CHINBDW: Barndoor for Inspire (White)
  • CHINSIK15B: Blind Sloped Ceiling Kit – 0 TO 15 Degree Angle (Black Trim)
  • CHINSIK15W: Blind Sloped Ceiling Kit – 0 TO 15 Degree Angle (White Trim)
  • CHINSIK30B: Blind Sloped Ceiling Kit – 20 TO 30 Degree Angle (Black Trim)
  • CHINSIK30W: Blind Sloped Ceiling Kit – 20 TO 30 Degree Angle (White Trim)
  • CQ632-9120: Blind Ceiling Mount Kit (Black)
  • CQ632-9121: Blind Ceiling Mount Kit (White)

Inspire XT™

PDF Download

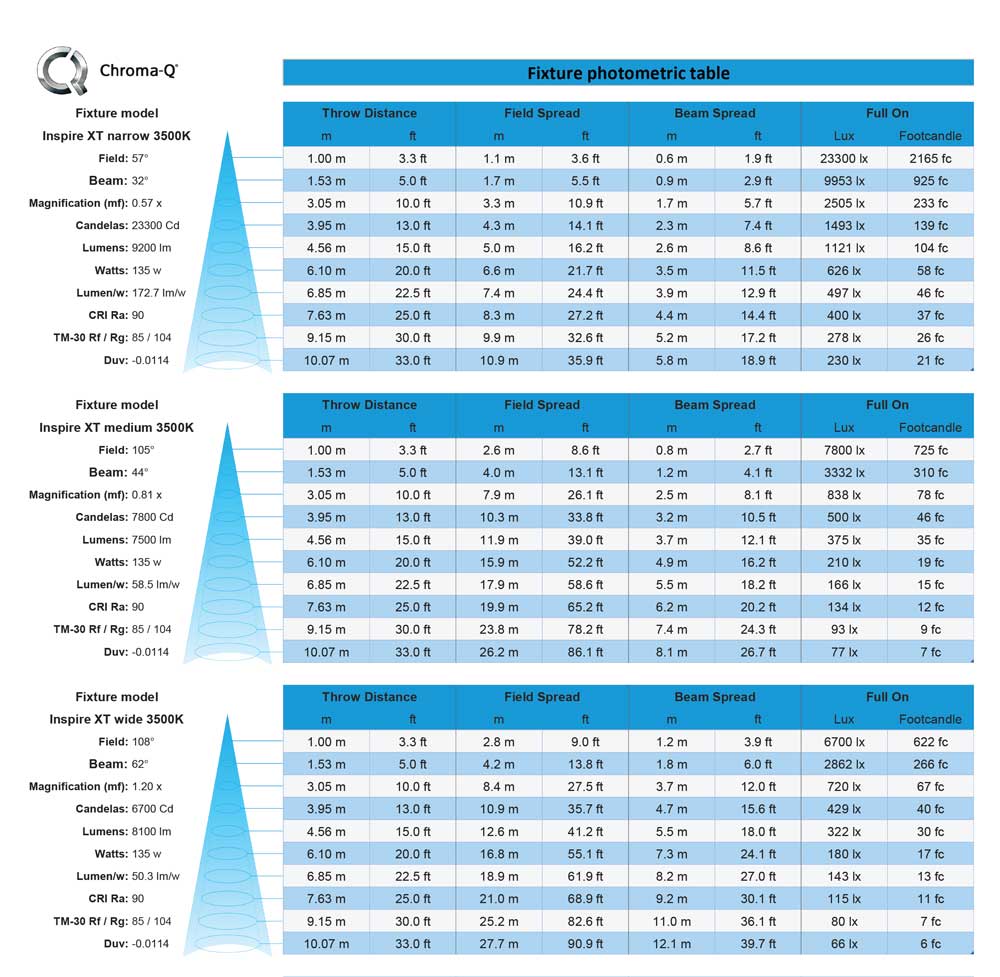

Chroma-Q-Inspire-range-Photometric-tables-release-2022-03-27-03_1000x977_XT

  • CHINHLRGBWXT
  • CHINHLRGBWXTW
  • CHINHLRGBWA

Disclaimer: Chroma-Q operates a policy of continuous development. Apex reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer’s web page for the most up-to-date specifications and product details chroma-q.com.

For support, visit: chroma-q.com/support

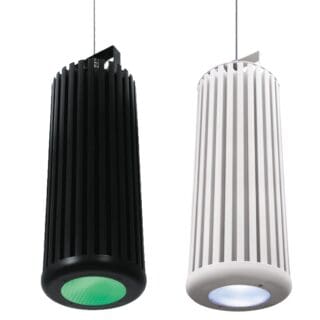

Two cylindrical pendant lights hang side by side, featuring vertical grooves and a modern, industrial design—perfect for enhancing your audio or video space with vibrant lighting in green and blue.

Connect

See this product in action

Schedule a Demo

You May Also Like

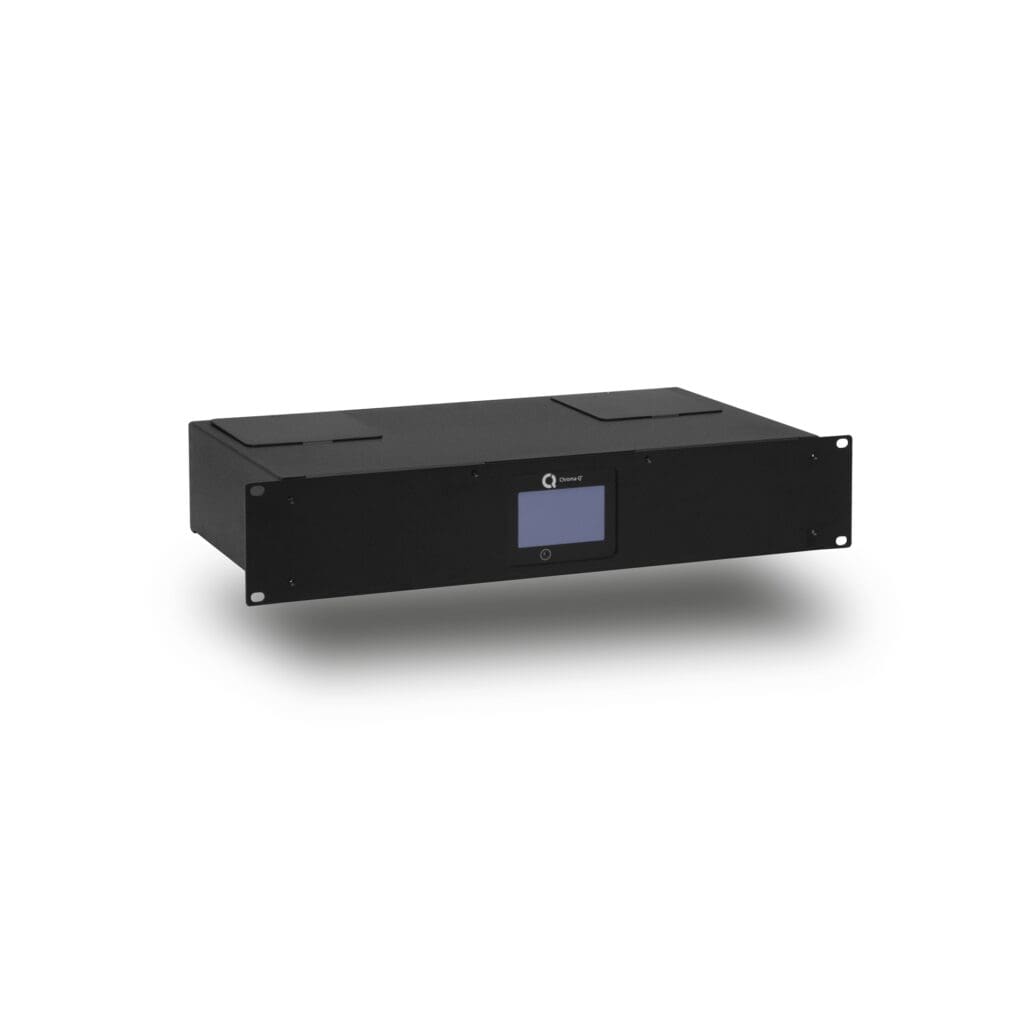

A black rectangular electronic device with a small digital display screen on the front panel, designed for rack mounting, ideal for professional audio or lighting control, shown on a white background.
