Features
• 4 channel Class-D installation amplifiers
• Fully integrated DSP
• GlidePath architecture for ultra-low distortion
• True Cone Excursion for extended speaker life
• Secure remote control / monitoring in the cloud
• Wired LAN Ethernet connection
• Web UI with built-in WiFi hotspot
• Ultra-quiet airflow management
• Unique internal streaming source

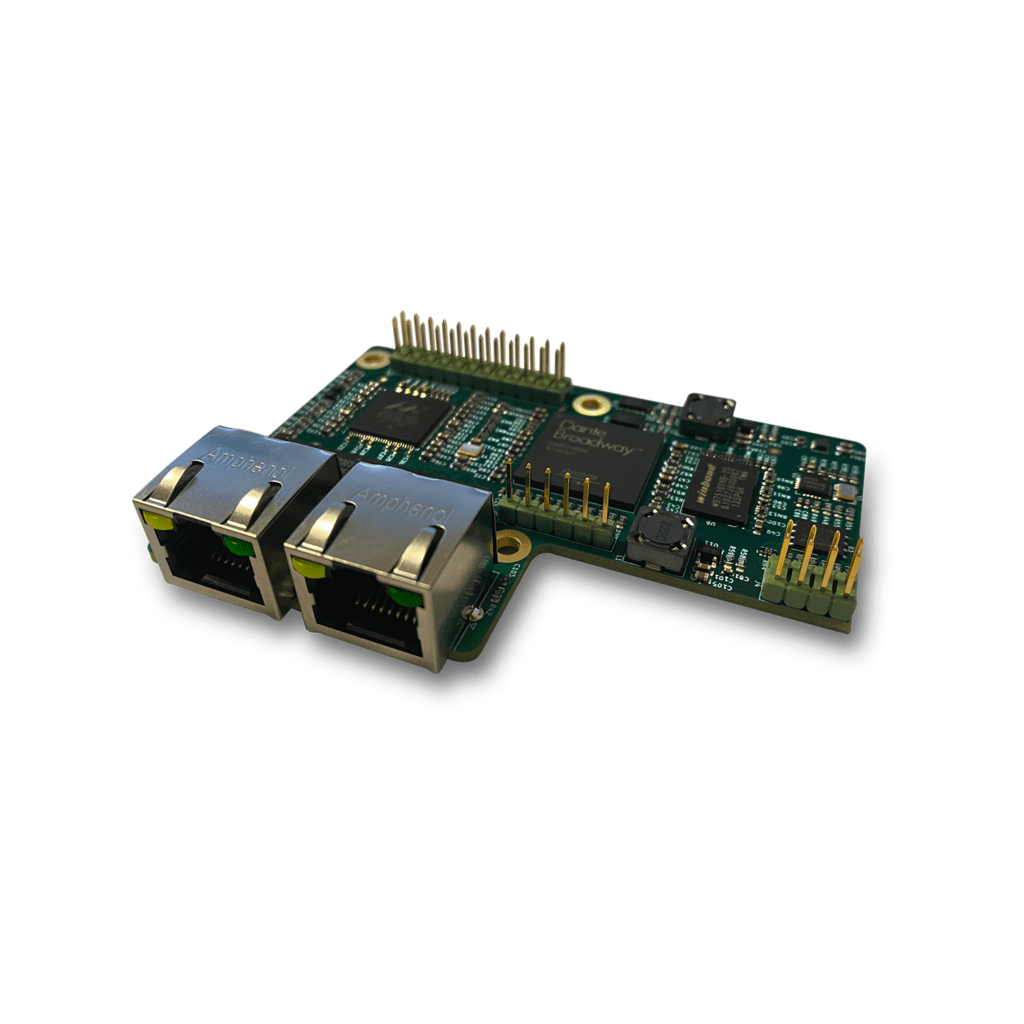

• 4×4 Dante integrated in ‘D’ models
• Drive low impedance and 70/100v speakers
• Deploy networked or standalone
• High visibility OLED display

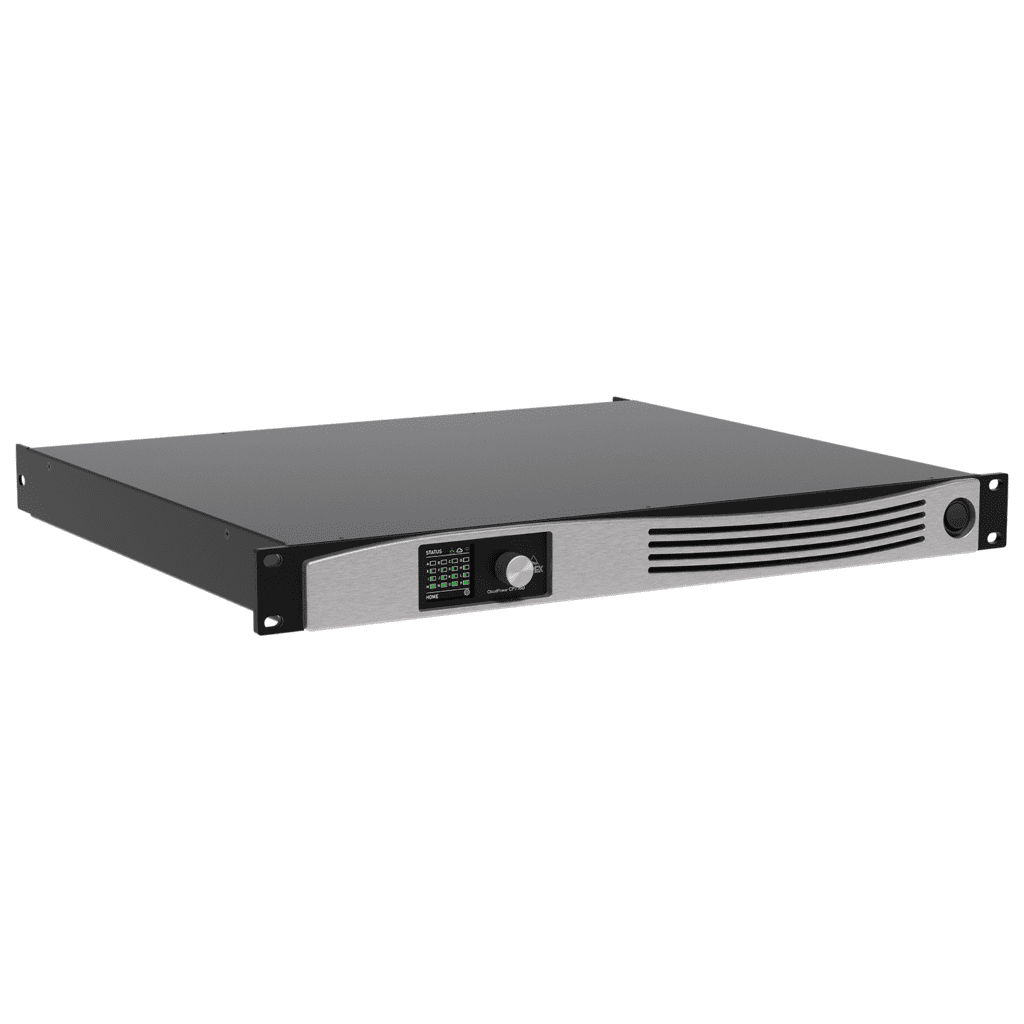

• Slimline 1U chassis
• High efficiency and low idle power
• Universal power supply & PFC

Cloud Power

Add value for your clients by monitoring and controlling CloudPower amplifiers anytime, anywhere over the APEX Cloud via secure connection. Keep tabs on multiple amps from your favourite device with our super-intuitive IntelliCloud Web UI. IntelliCloud is browser-based, so there are no software download hassles, and fans of our IntelliWare package will immediately recognise the smooth, streamlined workflows.

GlidePath™

CloudPower is founded on our proprietary GlidePath architecture, with DSP and amplifier circuits fully integrated for outstanding performance. GlidePath employs DC coupling throughout the signal path, dramatically reducing the time offsets and distortion associated with AC coupling. The result: crisper, punchier bass and brighter, more natural high frequencies, delivering superb intelligibility and higher perceived volume.​

True Cone Excursion​

GlidePath’s ultra-precise reproduction of high transients manages speaker cone excursion, consistently delivering higher output under a short initial impulse and significantly reducing trail output after the signal stops in head-to-head tests against mainstream Class-D amplifiers. The result: less distortion, higher perceived volume and reduced mechanical wear on speakers.​

Universal Power

CloudPower is ready to serve worldwide from 100-240VAC. Active Power Factor correction ensures efficient use of the mains power system. All models feature both remote and front panel on off switching and detachable mains cables.

Quietly Efficient

CloudPower amplifiers are engineered to not draw attention to themselves, even in the most audiophile environments. We employ up to eight tiny micro-fans to virtually eliminate annoying fan noise and maintain efficient cooling.

Internal Streaming Source

CloudPower is the first amplifier in its class with an integrated audio source and streaming capability, allowing easy streaming of background music from devices running apps such as Spotify or AirPlay.

Gain:
-80 to +15dB, 0,1dB steps
Polarity: normal / inverted

Delay:
0 to 250 ms (Shared between User and Group settings)

PEQ:
12 x PEQ. Each PEQ can be set to a choice of 16 fi lter types: Bell-Sym, Bell-Asym,
Notch, Low-Shelf 6dB or12dB, High-Shelf 6dB or 12db, All-Pass 90° or 180°, High Pass 6dB, or 12dB,
High-Pass VariQ 12dB, Low-Pass 6dB or 12dB, Low-Pass Vari-Q 12dB, Band-Pass

HP/LP filters:
Bessel , Butterworth and Linkwitz Riley with slopes from 6 to 48 dB/oct

Limiter:
Peak voltage, RMS voltage

Groups:
Six global processing group overlays which can link any amplifier channel in the network

Gain:
-80 to +15dB, 0,1dB steps
Delay: 0 to 250 ms (Shared between User and Group settings)

PEQ:
12 x PEQ. Each PEQ can be set to a choice of 16 fi lter types: Bell-Sym, Bell-Asym,
Notch, Low-Shelf 6dB or12dB, High-Shelf 6dB or 12db, All-Pass 90° or 180°,
High Pass 6dB, or 12dB, High-Pass VariQ 12dB, Low-Pass 6dB or 12dB, Low-Pass Vari-Q12dB, Band-Pass

Gain:
-80 to +15dB, 0,1dB steps

Polarity:
normal / inverted

Delay:
0 to 30ms

PEQ:
12 x PEQ. Each PEQ can be set to a choice of 16 fi lter types: Bell-Sym, Bell-Asym,
Notch, Low-Shelf 6dB or12dB, High-Shelf 6dB or 12db, All-Pass 90° or 180°, HighPass 6dB,
or 12dB, High-Pass VariQ 12dB, Low-Pass 6dB or 12dB, Low-Pass Vari-Q 12dB, Band-Pass

FIR filters:
1024 taps per channel

HP/LP filters:
Bessel , Butterworth and Linkwitz Riley with slopes from 6 to 48 dB/oct

Limiter:
Dual-stage, RMS + look ahead Peak limiter

Operating conditions:
0° to 50° C, 10 to 60 %, non-condensing

Storage conditions:
-20° to 70° C

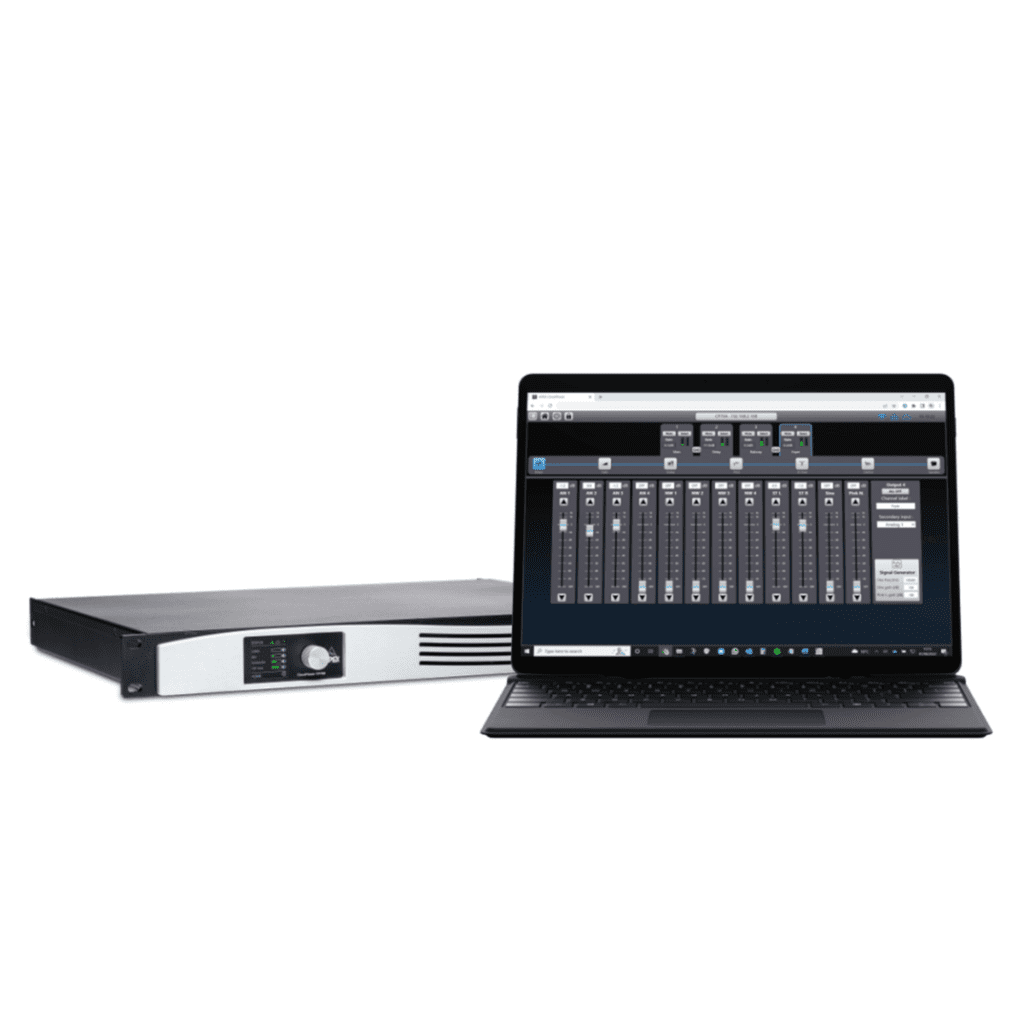

IntelliCloud
• Intuitive, linear workflow
• Browser-based WebUI – access from any device with no download
• Full toolkit – matrix, delay, PEQ, limiter, speaker presets, sig gen + more
• Simultaneous multi-user / device access
• Manage multiple amplifiers from one page

Discover IntelliCloud

Latest Update For CloudPower + IntelliCloud

• UDP command: request channel labelV1.3.5
• Internal dual redundant boot mechanism
• Improved firmware update mechanism

More on Firmware

Connect & Control Your Way

1. WiFi Hotspot – every CloudPower amplifier features a built-in access point
2. Wired IP – connect securely over a wired Local Area Network Ethernet connection
3. Hands-on front panel control with touch ‘n turn rotary control and high visibility OLED display

White Paper

Our White Paper details the results of head-to-head laboratory testing of CloudPower alongside another industry standard Class-D amplifier. The findings confirm feedback from listening tests with leading audio professionals: our GlidePath™️ direct drive technology results in far less distortion and minimizes cone excursion under dynamic impulses.

Read the White Paper on GlidePath

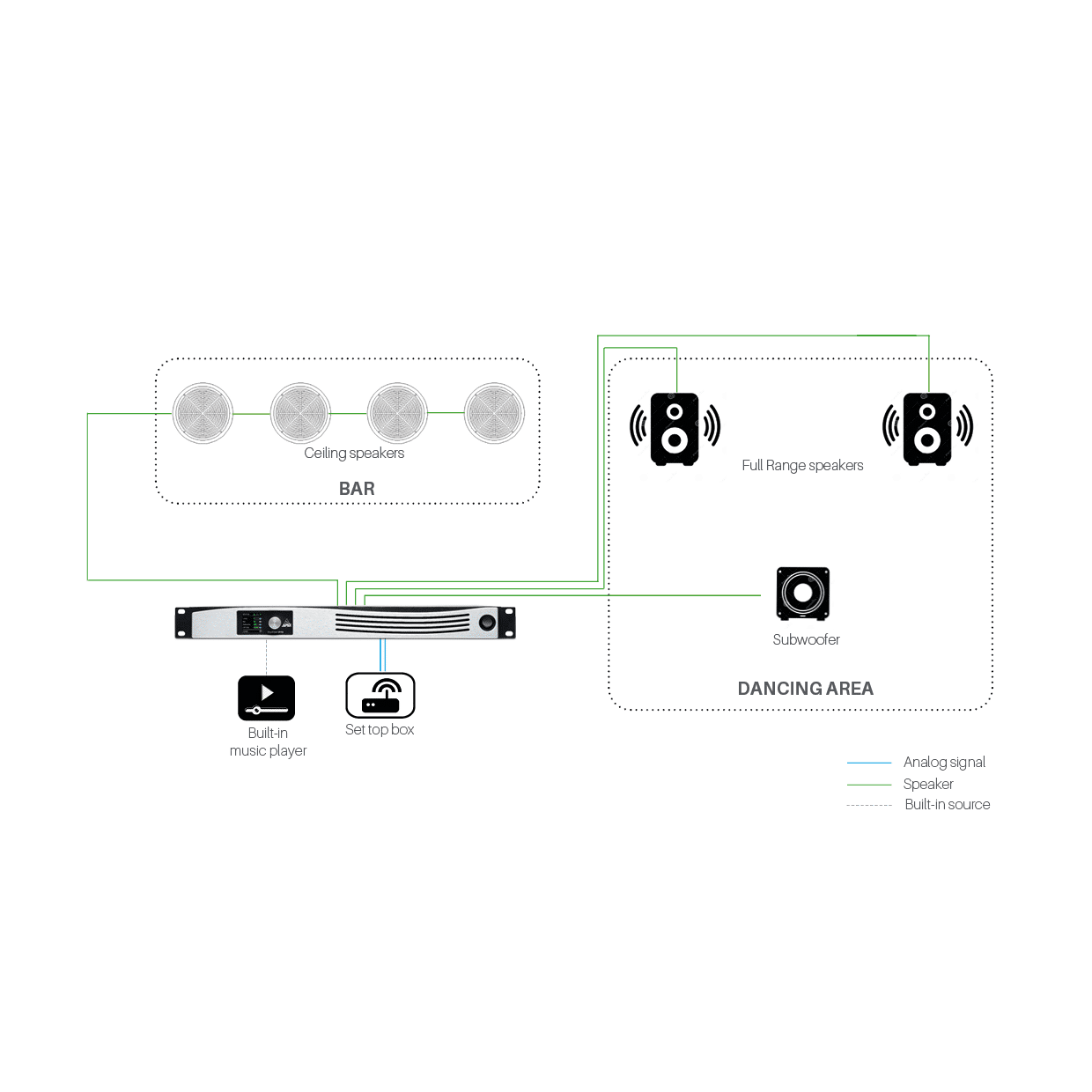

Bar

In this bar example, the two rooms are each equipped with their own speaker system comprising of a bar zone with ceiling mount loudspeakers and a dancing area with a stereo set of full range loudspeakers. Each of the systems is able to play any of the selected analog sources. The level can be easily adjusted via the front panel control or via an optional external computer.

Download application diagram ‘Bar’

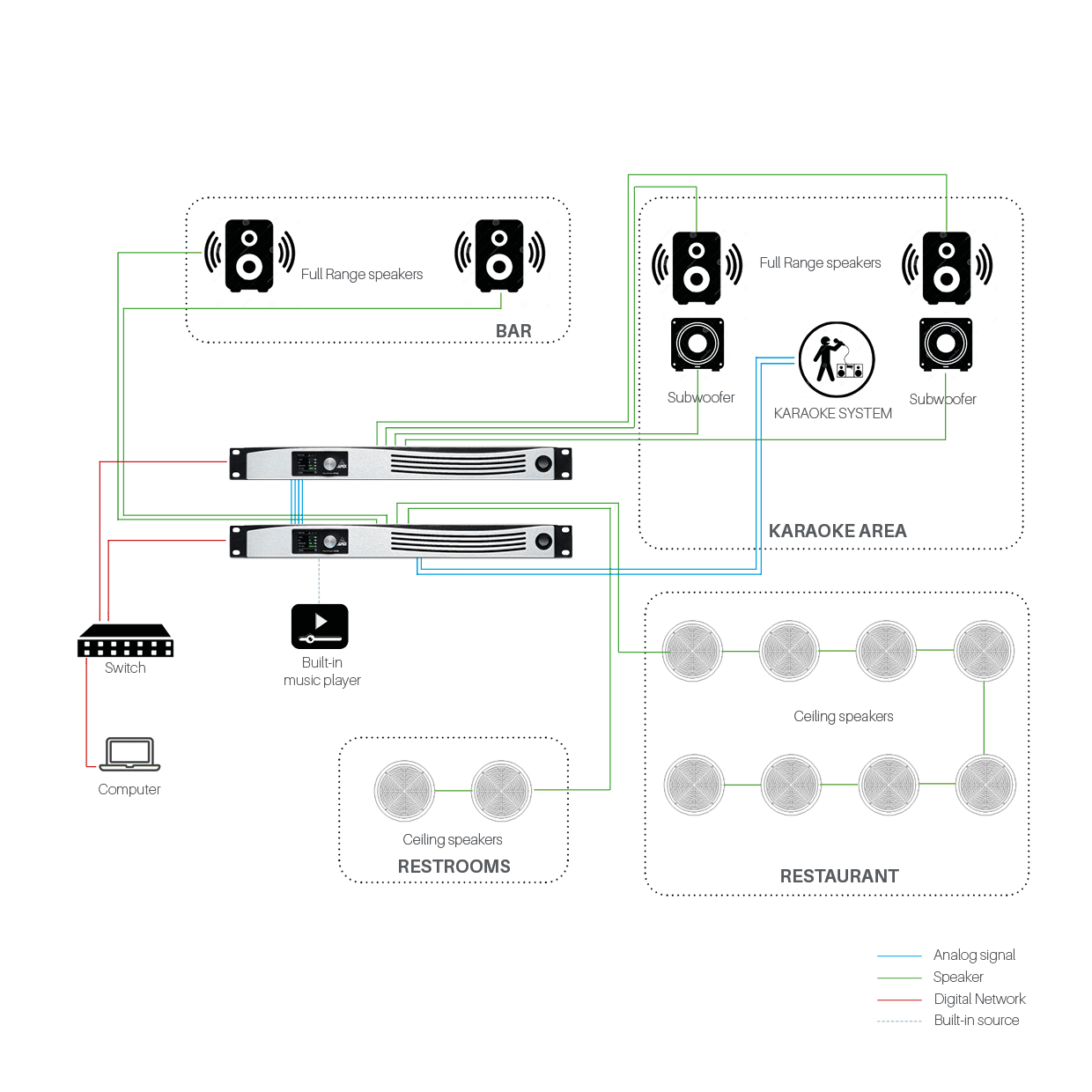

Restaurant with Karaoke Area

In this restaurant example, the four rooms are each equipped with their own speaker system comprising of a bar zone with full range loudspeakers, a Karaoke area with a small PA system, a restaurant with ceiling loudspeakers and the rest rooms, also equipped with ceiling loudspeakers. Each of the systems is able to play any of the selected analog or digital sources. The IntelliWare web based software has a powerful group function, so changes for every zone can be made from the central computer.

Download application diagram ‘Karaoke’

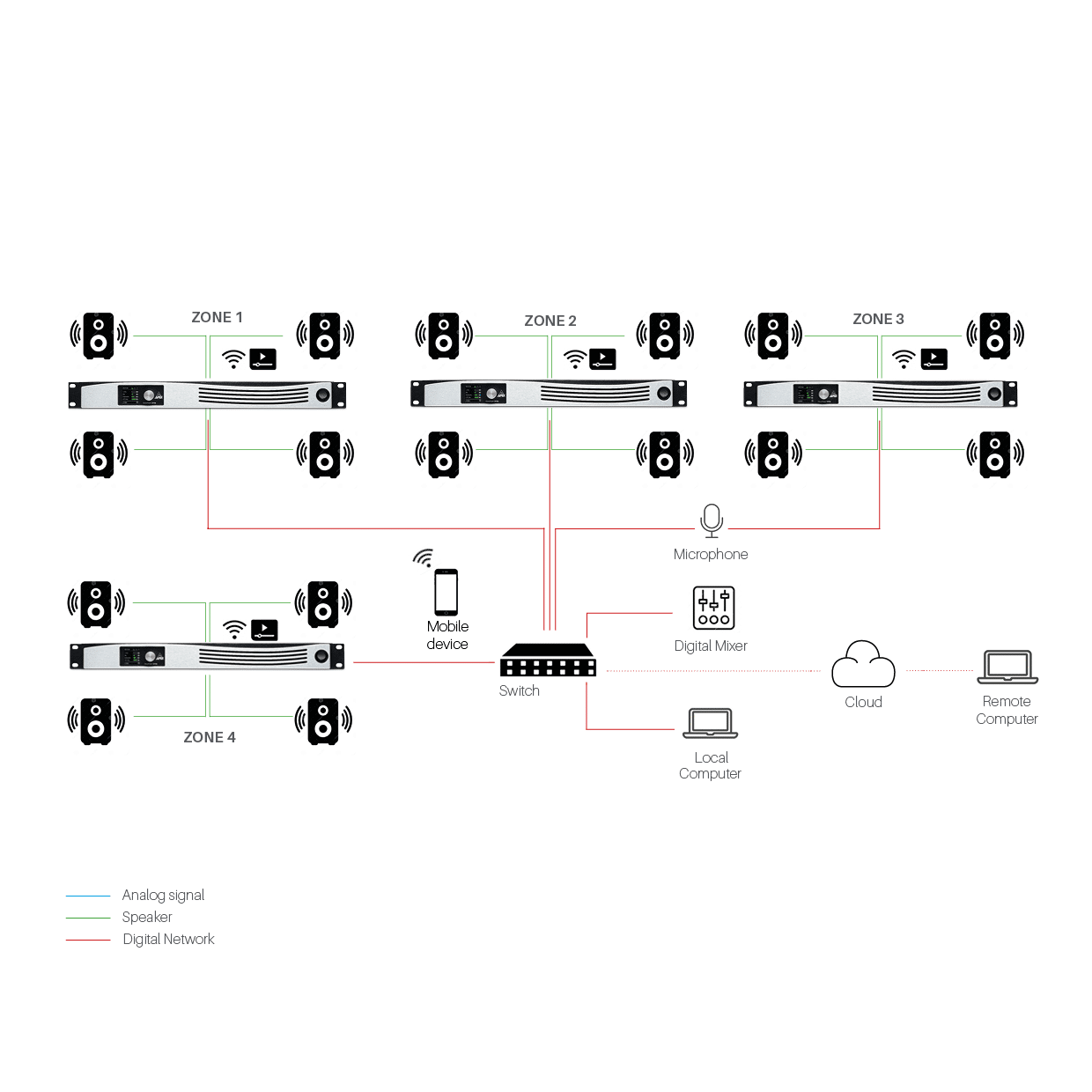

Museum

In this museum example, all the zones are equipped with their own speaker and amplifier system. The CloudPower devices are connected to a central switch with standard network cabling. Settings can be done with either the central local computer or from a remote location over the internet. Fine tuning can be done with any mobile device connected to an amp’s hotspot.

Download application diagram ‘Museum’

• CP354 - 4 x 350W
• CP354D - 4 x 350W with 4×4 Dante
• CP704 - 4 x 700W

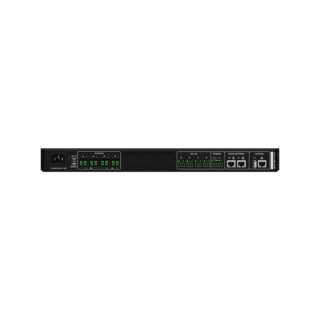

• CP704D - 4 x 700W with 4×4 Dante

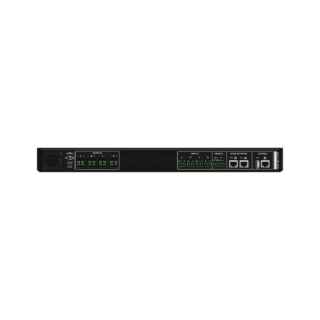

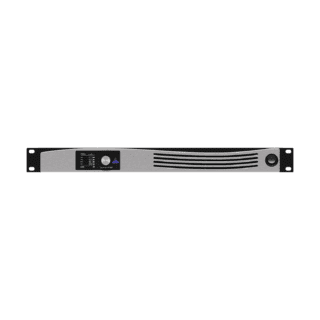

• CP1504 - 4 x 1500W
• CP1504D - 4 x 1500W with 4×4 Dante
• CP3004 - 4 x 3000W
• CP3004D - 4 x 3000W with 4×4 Dante
