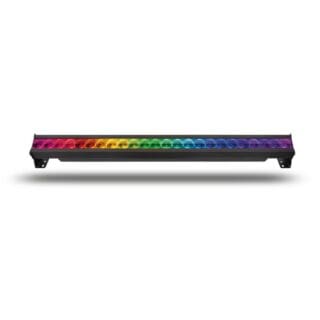

Color Force II 72 Plus™

Best Seller

Cyc, Wash & Effects LED Lighting, Simply Amazing!

Once again, Chroma-Q impresses with Color Force II Plus™, the updated version of the renowned Color Force II™ professional luminaire.

The Color Force II Plus™ boasts enhanced brightness and a richer palette, while maintaining the same form factor and character as the market-leading original. The innovative optical system with individually controlled pixels provides smooth, beautiful and even coverage for any cyc or surface with no unsightly colour shadowing.

Designed for a variety of applications where powerful and precise lighting is essential, including cyc, flood and wall washing up to 12m.

Available in 0.3m / 1 ft, 1.2m / 4 ft, and 1.8m / 6 ft versions.

Key Features

  • Featuring Chroma-Q’s proven award-winning technology
  • Fully useable along side original Color Force II
  • Over 4500 / 18,000 / 27,000 hot lumens, respectively
  • Extremely smooth, uniform output
  • Unmatched cyc evenness
  • Homogenised RGBA colour mixing
  • Rich saturated colours and smooth pastel colours
  • Pixel control to 76mm / 3 in increments
  • High CRI of 92
  • Theatrical grade dimming
  • Rugged extruded aluminium body
  • Built-in power supply
  • Chroma-Q ColorSure™ calibration means superior fixture-to-fixture consistency
  • Works great in theatre, TV, concert touring, exhibitions, or corporate events
  • Optional internal LumenRadio
  • Touchscreen user interface

Note: This product replaces the Color Force II™ 72

Schedule a Demo

Accessories

A set of three white plastic corner guards of varying lengths, perfect for protecting walls in audio, lighting, or video production spaces, shown on a plain white background.

Chroma-Q®

Border Lens-Color/Studio Force II Plus-72

A lens that widens the beam angle to 43° x 43°. Part Number: CHCFBL72…

Lighting Accessories

A white, flat, rectangular plastic or metal strip with a slightly tapered end, often used in audio or lighting setups, photographed against a plain white background.

Chroma-Q®

Clear Lens-Color/Studio Force II Plus-72

A clear lens helps to protect the front lens element in harsh environments and touring. Part Number: CHCFTL72: Clear lens for…

Lighting Accessories

Three long, white, rectangular plastic trim pieces—ideal for organizing video or audio cables—are stacked together and laid on a plain white background.

Chroma-Q®

Cyc Lens-Color/Studio Force II Plus-72™

Lens that widens the beam angle. Part Number: CHCFCL72…

Lighting Accessories

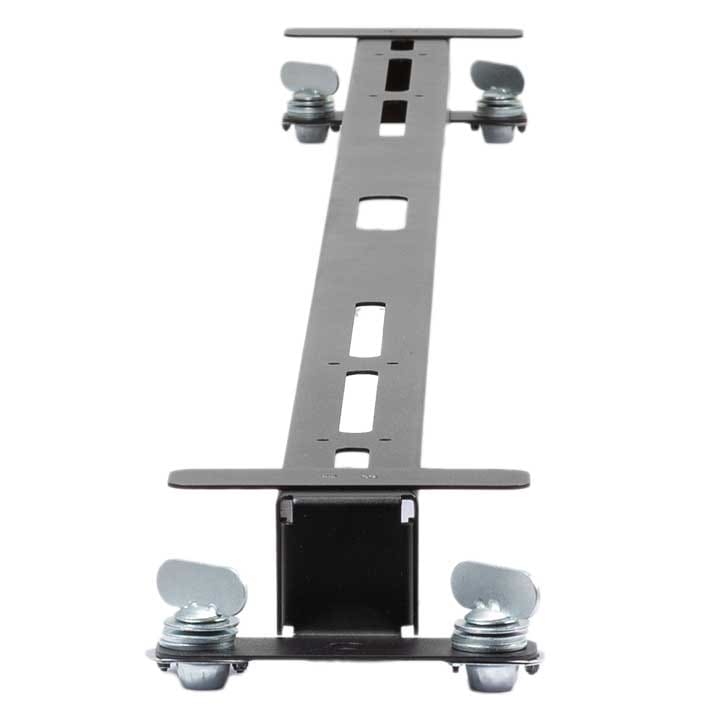

A black metal mounting bracket with a central rectangular bar and multiple slots, featuring four wing nuts and bolts at the corners, ideal for securing or adjusting lighting or audio equipment.

Chroma-Q®

Hang Force Kit for Color Force and Studio Force II Plus 48 and 72

Brilliant mounting for Color and Studio Force II Plus 48 and 72 The Hang Force – designed for use with their…

Lighting Accessories

A close-up view of a toner cartridge for a laser printer, placed on a dark surface with its top cover open, revealing the internal components under focused lighting.

Chroma-Q®

LightGuard for Color Force II Plus and Studio Force II Plus ranges

Easy to mount, foldable, optional LightGuard to hide the light source or prevent spills into camera or audience. The Lightguard…

Lighting Accessories

A green electronic circuit board with a small antenna labeled taoglas, suited for audio or video applications, a mounted module labeled TiMo RX RD01, and a loose black screw beside the board.

Chroma-Q®

LumenRadio Kit for Color/Studio Force II Plus series

Optional RF LumenRadio Kit for Color Force II Plus and Studio Force II Plus.

Lighting Accessories

A Chroma-Q The Force lighting control device featuring a touchscreen display with various settings icons, enclosed in a dark gray rectangular case with the Chroma-Q logo and The Force text on the front.

Chroma-Q®

The Force

“Chroma-Q The Force”, the versatile multi-tool designed for the dedicated lighting professional. This robust device streamlines the firmware update process…

Lighting Accessories

Lighting Control

Chroma-Q®

Uploader II

The Uploader II was discontinued in November 2024. The Force replaces it.  The Chroma-Q® Uploader II is a software…

Product Videos

Watch tutorials and use cases to see this product in action.

Chroma-Q® Color Force II™

Chroma-Q® Color Force II™ Powerful Cyc Light

Chroma-Q Color Force II™ & Inspire™

Color Force II 72 Plus™

Product Information

Homogenised Output – Superior Colour Blend & No Unsightly Colour-Mixing Shadows

Using the very latest fully homogenised optics found in the award winning Chroma-Q product range, the Color Force II Plus™ fixtures’ output is a single, clean and pure beam of light, delivering a superior colour blend with no unsightly colour-mixing shadows.

The homogenised optics and improved Chroma-Q technology provide even brighter, richer, higher quality saturates and pastels, and a purer white – all from a single source.

Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Colour Consistency
Proprietary calibration technologies ensure each Color Force II Plus leaves the factory colour matched, delivering completely consistent colours unit to unit even side by side.

Even More Creative Control

The new models also provide more creative control, with twice as many light engines accommodated within the same fixture lengths – providing independently controllable cells every 3 inches.

Simply Amazing!

When you are ready for new fixtures the choice remains simple.

Schedule a demo of the Color Force II Plus™ Plus today, and continue to be amazed.

RDM
Extensive RDM functionality is provided through wired or the optional LumenRadio CRM.



Color Force II Plus 72
Product Code CQ1641-3000 Color Force II Plus 72 w/trunnion, TRUE1 to 15-5P Cable, BK
CQ1641-3100 Color Force II Plus 72 w/trunnion, TRUE1 to 15-5P Cable, WH
CQ1641-3500 Color Force II Plus 72 w/trunnion, TRUE1 to 15-5P Cable, RF, BK, with LumenRadio
CQ1641-3600 Color Force II Plus 72 w/trunnion, TRUE1 to 15-5P Cable, RF, WH, with LumenRadio
Net Dimensions 1,759mm x 165mm x 191mm / 69.25” x 6.5” x 7.5”
Net Weight 24 kg / 53 lb
Shipping Dimensions 1,855mm x 305mm x 320mm / 73″ x 12″ x 12.5″
Shipping Weight 27 kg / 59 lbs
Power Supply Built-in
Power Input Rating 100-240V AC 50-60Hz 800VA
Power Factor 0.96 @ 120V AC,
0.99 @ 240V AC
Power Consumption 800W @ 120V AC,
800W @ 240V AC
Idle Power Consumption 29W @ 120V AC,
32W @ 230V AC
Typical Power & Current Measurements were done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out Neutrik powerCON TRUE1
Data Connectors In/Out Neutrik XLR 5-pin
Control Protocol ANSI E1.11 USITT DMX 512-A
Cooling System Forced
Operating Temperature 0°C to 40°C
Construction Anodised aluminium extrusion
Colour Black
Built-In Hardware Quick release lever for tilt adjustment
IP Rating IP20
Approvals CISPR 22: 2006/EN55022: 2006 & CISPR 24: 1997/EN55024: 1998, ICES-003: 2004 & FCC Part 15 Subpart B: 2007, CSA
C22. No. 166-M1983:R2008 UL 1573: 2003; UL 8750





Color Force II Plus 72
LED Engines 24
Hot Lumen Output (Combined) 23,400
Control Modes Strobe Options, RGBA, RGB, HSI, x1, x2, x3, x4, x6, x8, x12, x24, Look Select, Master, Odd / Even, Skip2, Skip3, Skip6
Dimming Curve Theatrical
Variable Effects Engine Strobe, Strobe on Top, Strobe Random
Optics Fully homogenised
Beam Angle 22° (approx.)
Beam Angle With Optional Cyc Optic 80° x 35° (approx.)
Beam Angle With Optional Border Optic 43° (approx.)
Beam Distribution Asymmetrical direct illumination
CCT 1,000K – 10,000K
Colour Gamut Performance enhanced
CRI 92
Lamp Life L70 at 50,000 hours



  • CHCFBL72: Chroma-Q Border lens for Color Force II Plus 72
  • CHCFCL72: Chroma-Q Cyc lens for Color Force II Plus 72
  • CHUSBLOADER2: Chroma-Q Uploader



Color Force II 72 Plus™

PDF Download

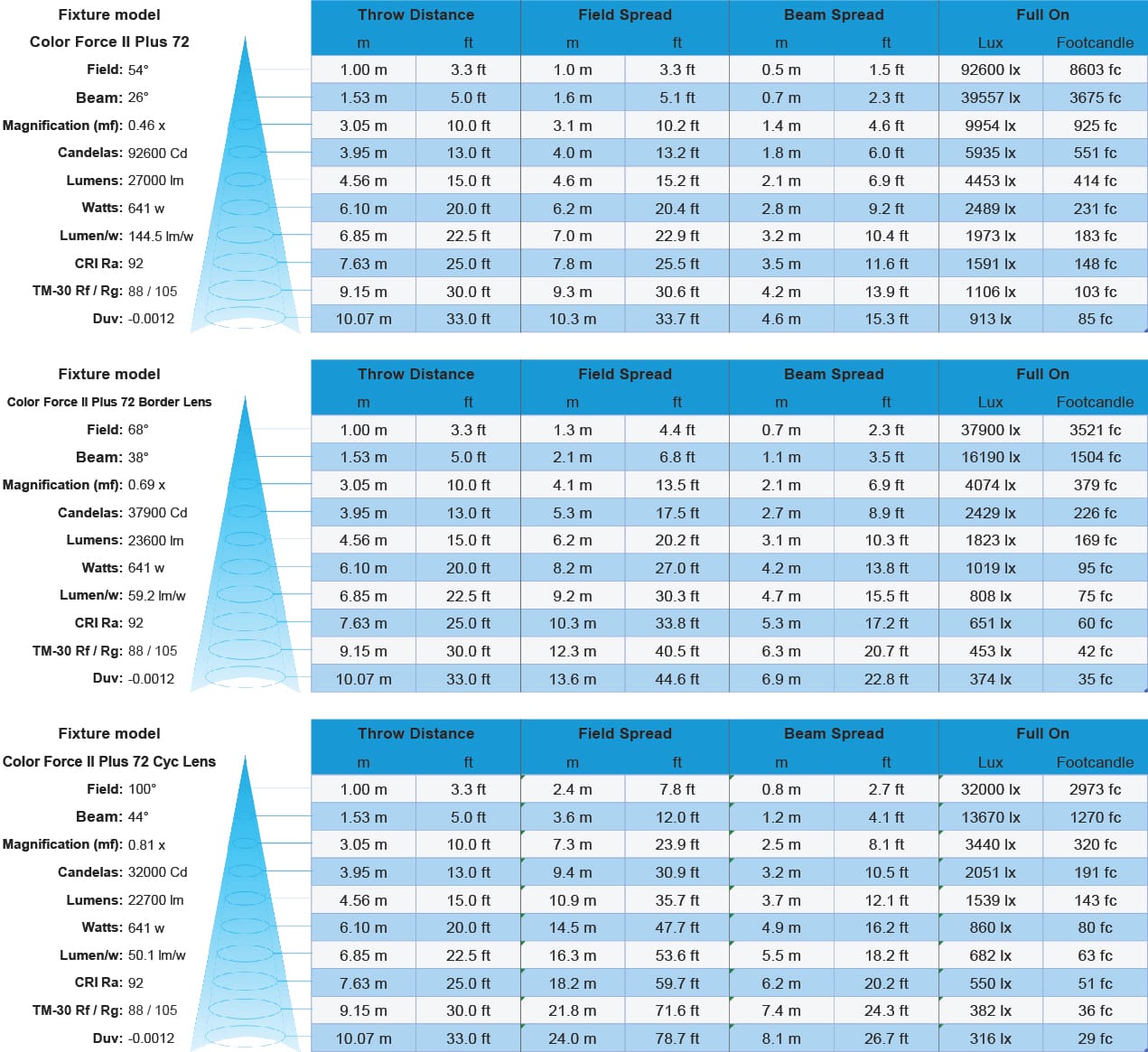

Chroma-Q Color Force II Plus 72 Photometric tables release 2024-03-08

CQ1641-3000, CQ1641-3100, CQ1641-3500, CQ1641-3600

Disclaimer: Chroma-Q operates a policy of continuous development. Apex reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer’s web page for the most up-to-date specifications and product details chroma-q.com.
