Product

Chroma-Q®

Color Force II 48 Plus™

Best Seller

Cyc, Wash & Effects LED Lighting, Simply Amazing!

Once again, Chroma-Q impresses with Color Force II Plus™, the updated version of the renowned Color Force II™ professional luminaire.

The Color Force II Plus™ boasts enhanced brightness and a richer palette while maintaining the same form factor and character as the market-leading original. The innovative optical system with individually controlled pixels provides smooth, beautiful, and even coverage for any cyc or surface with no unsightly colour shadowing.

Designed for a variety of applications where powerful and precise lighting is essential, including cyc, flood, and wall washing up to 12m.

Available in 0.3m / 1 ft, 1.2m / 4 ft, and 1.8m / 6 ft versions.

Key Features

  • Featuring Chroma-Q’s proven award-winning technology
  • Fully useable along side original Color Force II
  • Over 4500 / 18,000 / 27,000 hot lumens, respectively
  • Extremely smooth, uniform output
  • Unmatched cyc evenness
  • Homogenised RGBA colour mixing
  • Rich saturated colours and smooth pastel colours
  • Pixel control to 76mm / 3 in increments
  • High CRI of 92
  • Theatrical grade dimming
  • Rugged extruded aluminium body
  • Built-in power supply
  • Chroma-Q ColorSure™ calibration means superior fixture-to-fixture consistency
  • Works great in theatre, TV, concert touring, exhibitions, or corporate events
  • Optional internal LumenRadio
  • Touchscreen user interface

Note: This product replaces the Color Force II™ 48

Schedule a Demo

Accessories

A set of three white plastic corner guards, ideal for protecting spaces in audio, lighting, or video setups, stacked together against a plain white background.

Chroma-Q®

Border Lens-Color/Studio Force II Plus-48

A lens that widens the beam angle to 43° x 43°. Part Number: CHCFBL48…

Lighting Accessories

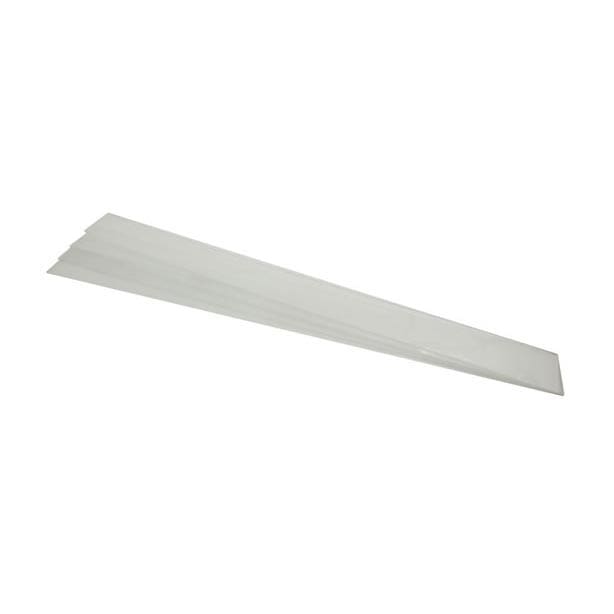

Three white rectangular plastic strips, often used in audio or video setups, are stacked together and taper slightly at one end, set against a plain white background.

Chroma-Q®

Clear Lens-Color/Studio Force II Plus-48

A clear lens helps to protect the front lens element in harsh environments and touring. Part Number: CHCFTL48: Clear lens for Color…

Lighting Accessories

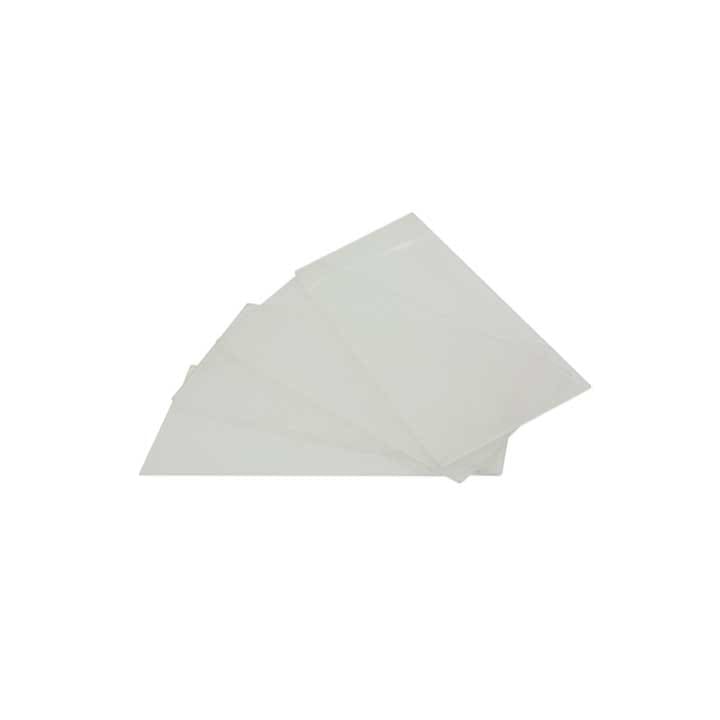

Four transparent plastic sheets are stacked slightly askew on a plain white background, with the lighting highlighting their clean edges and sleek surface.

Chroma-Q®

Cyc Lens-Color/Studio Force II Plus-12™

Lens that widens the beam angle. Part Number: CHCFCL12…

Lighting Accessories

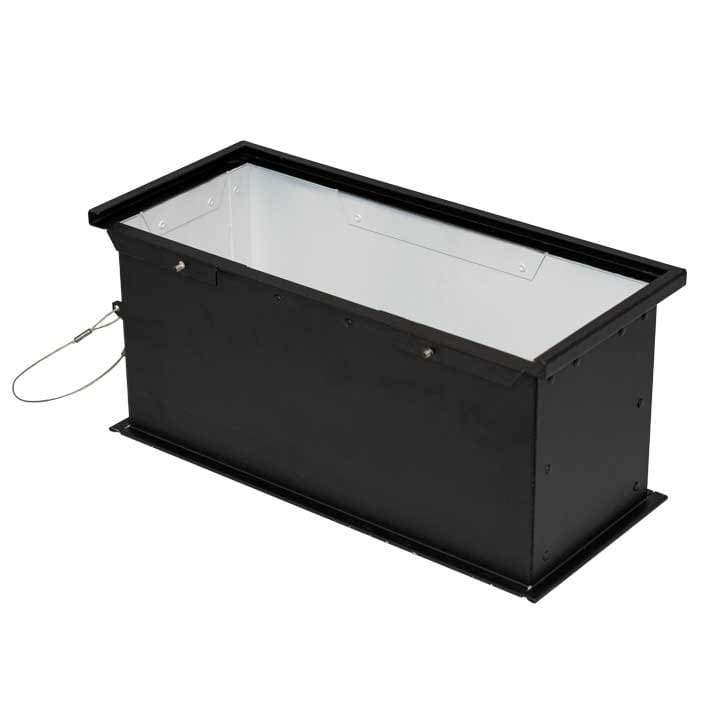

A black, rectangular metal box with an open top, white interior, and a small security cable attached to one side—ideal for organizing video or audio equipment.

Chroma-Q®

Diffuser Box For Force II Plus 12

Diffuser Box For Force II Plus 12. Part Number: CHCFDBX – Black, CHCFDBXW – White…

Lighting Accessories

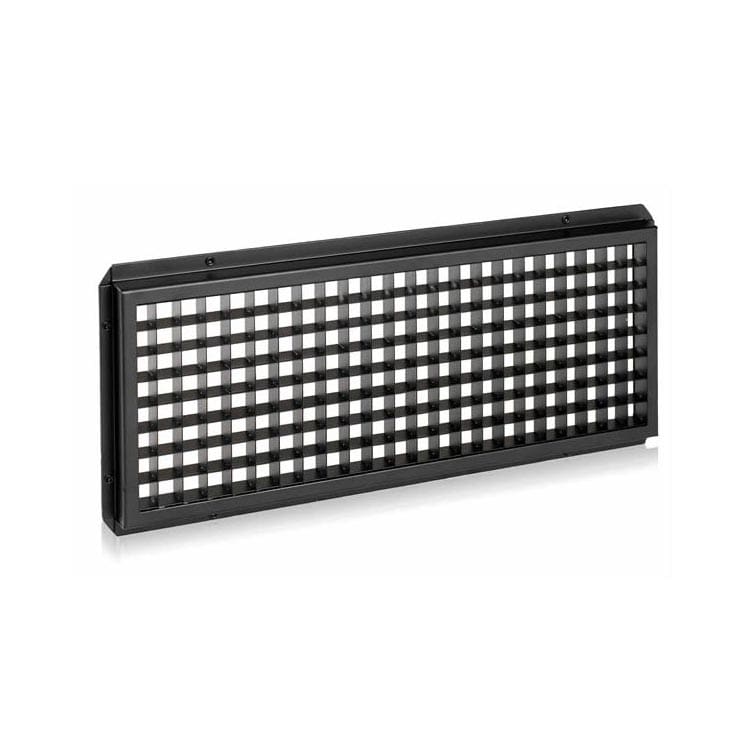

A rectangular black grid light modifier, known as a honeycomb grid, designed for use with studio lighting to control light spread and direction—ideal for precise lighting in video or audio production setups.

Chroma-Q®

Egg Crate Louvre for Force II Plus 12

An accessory that narrows the beam of light. Part Number: CHCFECL12…

Lighting Accessories

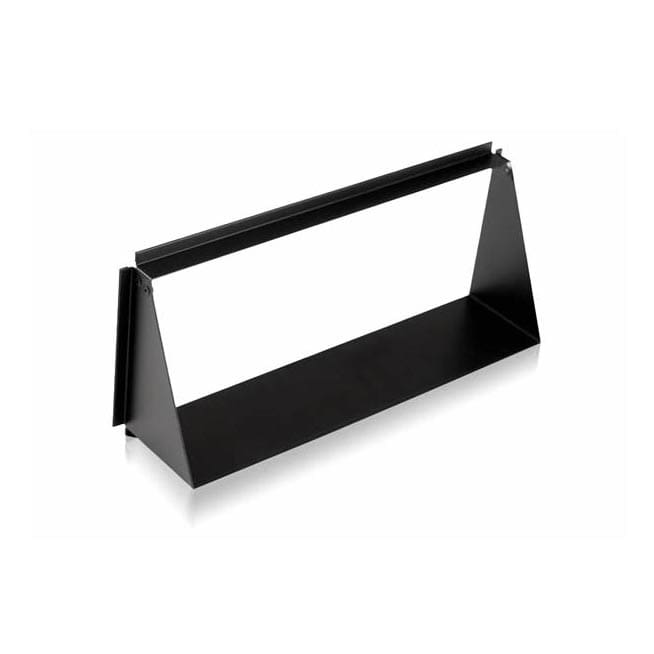

A black, metal, rectangular shelf with triangular side supports, open on the front and top, ideal for organizing video or audio equipment. Suitable for wall mounting or tabletop use.

Chroma-Q®

Half Top Hat for Force II Plus 12

This accessory serves to control light spill from the fixture and to reduce the viewing angle to the lens. Part…

Lighting Accessories

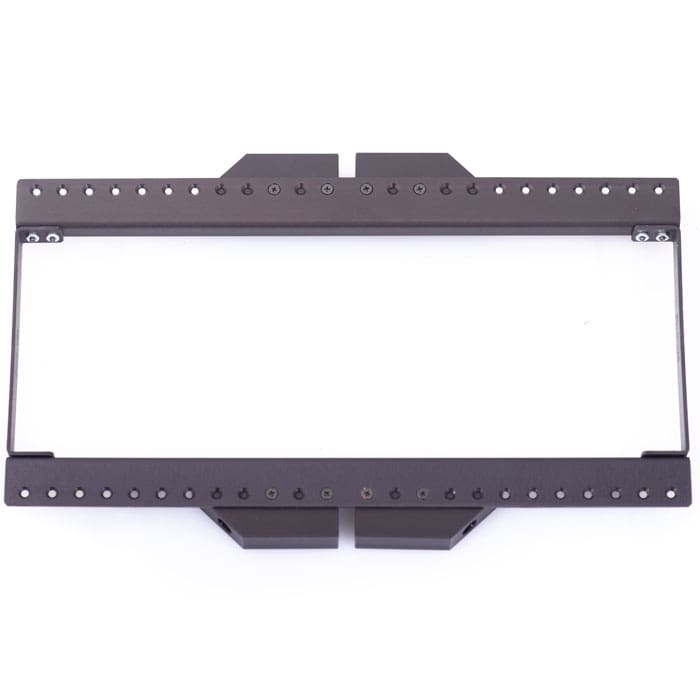

Rectangular black metal bracket or frame with multiple holes along its edges, often used in audio or video setups, viewed from above on a white background.

Chroma-Q®

Lightbank Adaptor (Speedring) for Force II Plus 12

An accessory that helps mount the Lightbank Kit. Part Number: CHCFLBA12…

Lighting Accessories

A rectangular softbox light diffuser with a white front panel and black sides, mounted on a metal bracket, used for professional photography, video lighting, or studio setups.

Chroma-Q®

Lightbank Kit+ for Force II Plus 12 (consists of Lightbank Adaptor (Speedring) & Lightbank)

This kit includes both the Lightbank Kit and the adapter required for mounting. Part Number: CHCFLB12…

Lighting Accessories

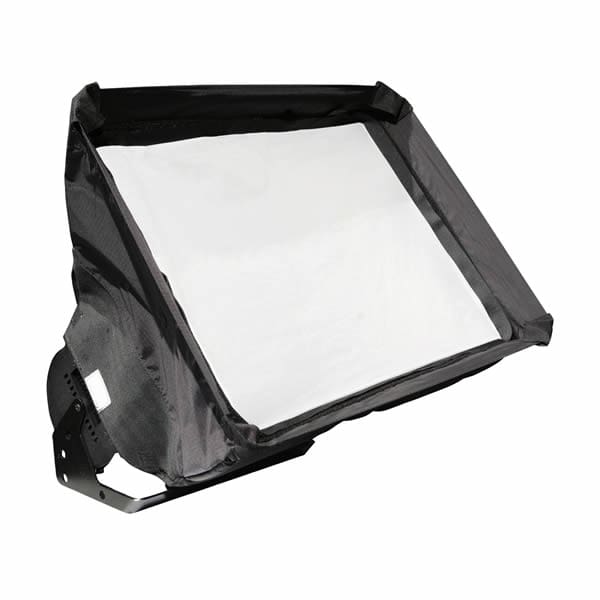

A studio softbox light with a rectangular white diffuser and black edges, mounted on an adjustable bracket, ideal for enhancing lighting in photography or video shoots.

Chroma-Q®

Lightbank Kit for Force II Plus 12

This accessory converts the the fixture into a softbox. It comes with three different diffusers. Part number: CHCFLB12…

Lighting Accessories

A green electronic circuit board with a small antenna labeled taoglas, suited for audio or video applications, a mounted module labeled TiMo RX RD01, and a loose black screw beside the board.

Chroma-Q®

LumenRadio Kit for Color/Studio Force II Plus series

Optional RF LumenRadio Kit for Color Force II Plus and Studio Force II Plus.

Lighting Accessories

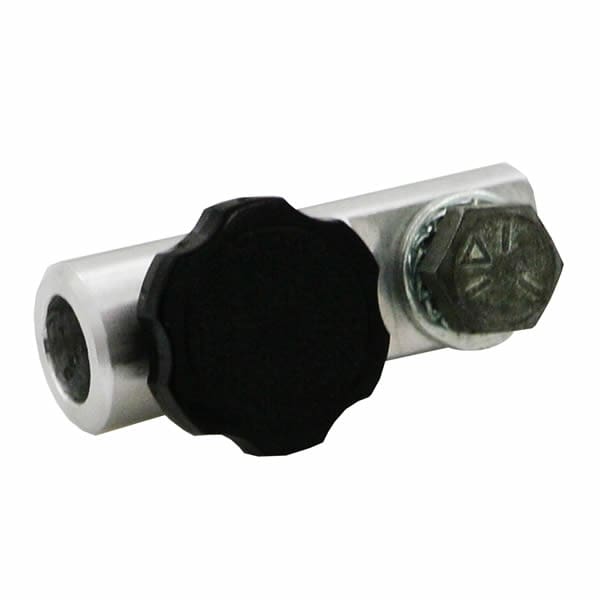

A close-up photo of a metal connector with a black plastic knob and a hexagonal bolt on one side, commonly used for joining or securing audio or lighting parts together.

Chroma-Q®

Spigot Adaptor for Force 12

This accessory allows the fixture to be mounted on a stand with a 5/8″ pin. Part Number: CHCFSA12…

Lighting Accessories

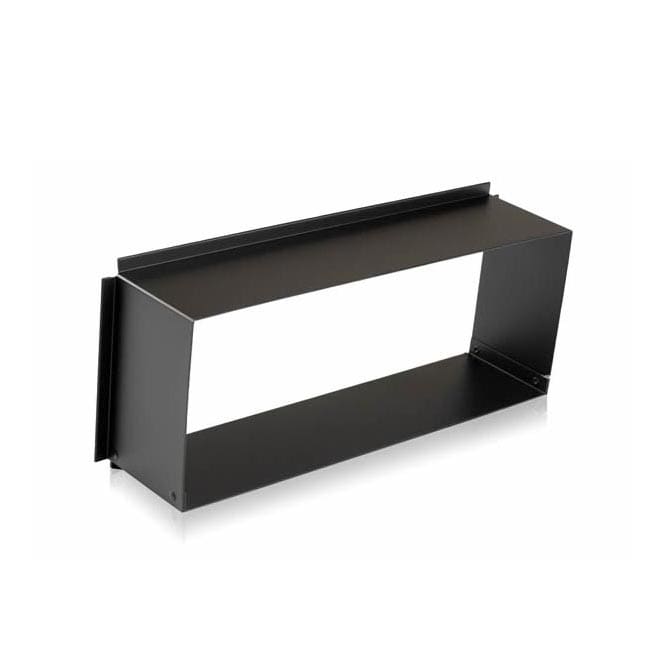

A rectangular black metal vent transition duct with flanges on both ends, designed for connecting HVAC, range hood systems, or integrating audio, video, and lighting installations seamlessly.

Chroma-Q®

Top Hat for Force II Plus 12

Top Hat for Force II Plus 12 helps to control light spill and reduce the viewing angle. Part Number: CHCFTH12…

Lighting Accessories

Chroma-Q®

Uploader II

The Uploader II was discontinued in November 2024. The Force replaces it.  The Chroma-Q® Uploader II is a software…

A black LED floodlight with a rectangular reflector and mounting bracket, designed for outdoor or industrial lighting and perfect for enhancing video or audio production setups.

Chroma-Q®

Zip Hood for Color/Studio Force II Plus 12™

Zip Hood for Color/Studio Force II Plus 12™ diffuses light from the fixture and directs it perpendicular to the lens.

Lighting Accessories

Color Force II 48 Plus™

Product Information

Homogenised Output – Superior Colour Blend & No Unsightly Colour-Mixing Shadows

Using the very latest fully homogenised optics found in the award winning Chroma-Q product range, the Color Force II Plus™ fixtures’ output is a single, clean and pure beam of light, delivering a superior colour blend with no unsightly colour-mixing shadows.

The homogenised optics and improved Chroma-Q technology provide even brighter, richer, higher quality saturates and pastels, and a purer white – all from a single source.

Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Colour Consistency
Proprietary calibration technologies ensure each Color Force II Plus™ leaves the factory colour matched, delivering completely consistent colours unit to unit even side by side.

Even More Creative Control

The new models also provide more creative control, with twice as many light engines accommodated within the same fixture lengths – providing independently controllable cells every 3 inches.

Simply Amazing!

When you are ready for new fixtures the choice remains simple.

Schedule a demo of the Color Force II Plus™ today, and continue to be amazed.

RDM
Extensive RDM functionality is provided through wired or the optional LumenRadio CRM.

Color Force II Plus 48
Product Code CQ1641-2000 Color Force II Plus 48 w/trunnion, TRUE1 to 15-5P Cable, BK
CQ1641-2100 Color Force II Plus 48 w/trunnion, TRUE1 to 15-5P Cable, WH
CQ1641-2500 Color Force II Plus 48 w/trunnion, TRUE1 to 15-5P Cable, RF, BK, with LumenRadio
CQ1641-2600 Color Force II Plus 48 w/trunnion, TRUE1 to 15-5P Cable, RF, WH, with LumenRadio
Net Dimensions 1,181mm x 165mm x 191mm / 46.5″ x 6.5″ x 7.5″
Net Weight 18 Kg / 40 lb
Shipping Dimensions 1,295mm x 305 mm x 320mm / 51” x 12” x 12.5”
Shipping Weight 21 Kg / 46 lb
Power Supply Built-in
Power Input Rating 100-240V AC, 50-60 Hz, 550VA
Power Factor 0.97 @ 120V AC,
0.92 @ 240V AC
Power Consumption 533W @ 120V AC,
533W @ 240V AC
Idle Power Consumption 27W @ 120V AC,
30W @ 240V AC
Typical Power & Current Measurements were done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out Neutrik powerCON TRUE1
Data Connectors In/Out Neutrik XLR 5-pin
Control Protocol ANSI E1.11 USITT DMX 512-A
Cooling System Forced
Operating Temperature 0°C to 40°C
Construction Anodised aluminium extrusion
Colour Black
Built-In Hardware Quick release lever for tilt adjustment
IP Rating IP20
Approvals CISPR 22: 2006/EN55022: 2006 & CISPR 24: 1997/EN55024: 1998, ICES-003: 2004 & FCC Part 15 Subpart B: 2007, CSA
C22. No. 166-M1983:R2008 UL 573:2003; UL 8750



Color Force II Plus 48
LED Engines 16
Hot Lumen Output (Combined) 17,500
Control Modes RGBA, RGB, HSI, Look Sel, Master, x16 , x8 , x4 , x2 , x1, Odd /Even, Skp3 , Skp7
Dimming Curve Theatrical
Variable Effects Engine Strobe, Strobe on Top, Strobe Random
Optics Fully homogenised
Beam Angle 22° (approx.)
Beam Angle With Optional Cyc Optic 80° x 35° (approx.)
Beam Angle With Optional Border Optic 43° (approx.)
Beam Distribution Asymmetrical direct illumination
CCT 1,000K – 10,000K
Colour Gamut Performance enhanced
CRI 92
Lamp Life L70 at 50,000 hours



  • CHCFBL48: Chroma-Q Border lens for Color Force II Plus 48
  • CHCFCL48: Chroma-Q Cyc lens for Color Force II Plus 48
  • CHUSBLOADER2: Chroma-Q Uploader

Color Force II Plus 48™

PDF Download

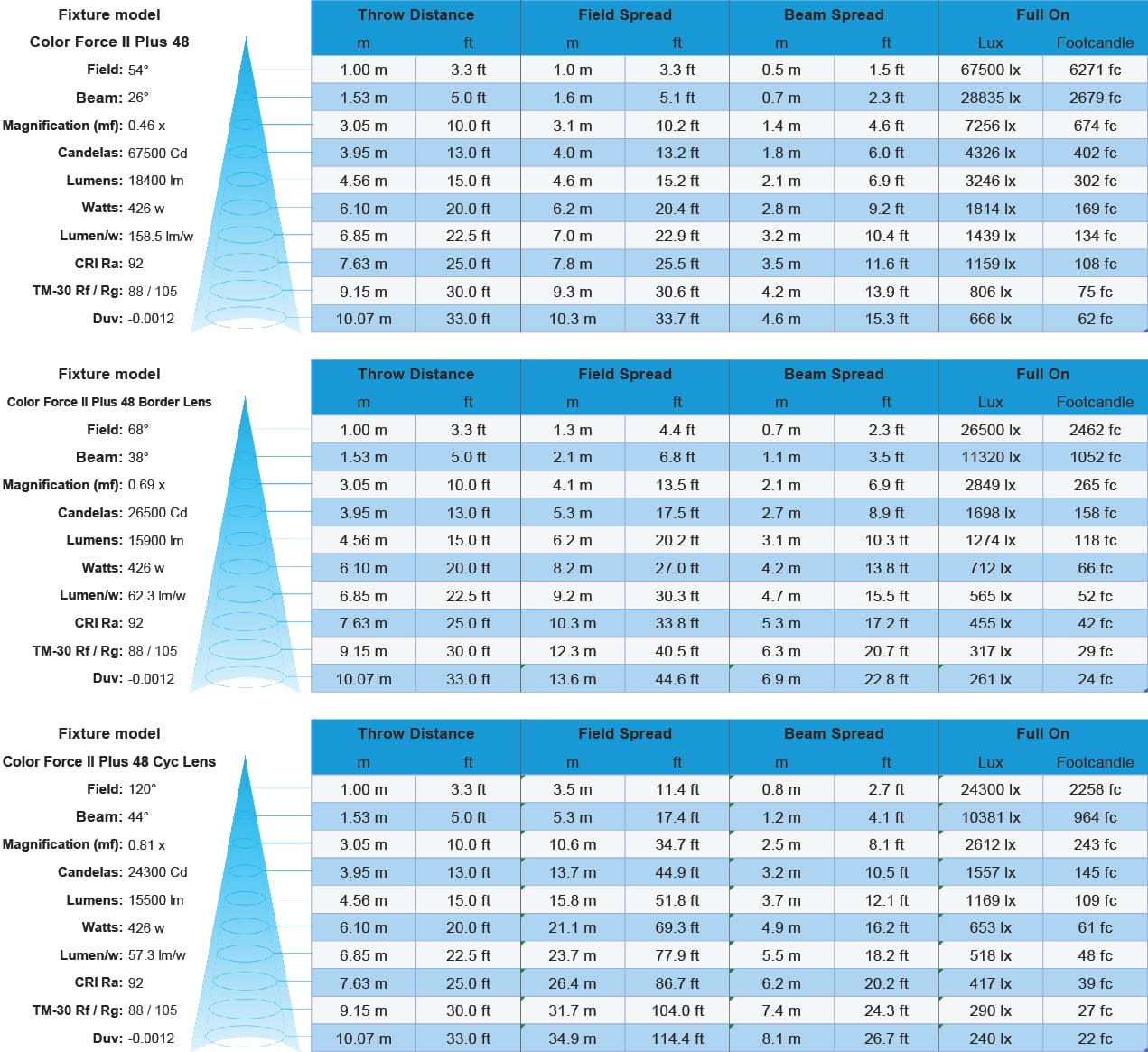

Chroma-Q Color Force II Plus 48 Photometric tables release 2024-03-08

CQ1641-2000, CQ1641-2100, CQ1641-2500, CQ1641-2600

Disclaimer: Chroma-Q operates a policy of continuous development. Apex reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer’s web page for the most up-to-date specifications and product details chroma-q.com.

For support, visit: chroma-q.com/support

Color Force II 48 Plus™

How creatives are using...

The Color Force II Plus lights are fantastic. The intensity and color saturation is far superior to the colour chorus fixtures. The lensing also blends better on scenic elements, giving even coverage at close range.
Color Force II Plus lights are fantastic Michele McLeskey, Master Electrician FOH Productions
A glowing blue neon at symbol (@) on a dark background with abstract, flowing blue light shapes and dynamic lighting effects scattered throughout the image.
I love providing Color Force II Plus fixtures because they check every box—for designers, they deliver beautiful, consistent color and flawless wall washes; for master electricians, they’re reliable, easy to rig, and a dream to work with. As a project manager, it’s a win when a fixture satisfies both sides of the production.
Color Force II Plus fixtures check every box! Pedro Guzman, project manager, FOH Productions
A glowing blue neon at symbol (@) on a dark background with abstract, flowing blue light shapes and dynamic lighting effects scattered throughout the image.
The Color Force II Plus is easily the top fixture on the market for lighting drape or scenic elements. The color saturation is phenomenal, the brightness is powerful, and the lensing does a beautiful job diffusing the output to eliminate hot spots. Simply put—they’re just really great lights.
Color Force II Plus is easily the top fixture on the market for lighting drape or scenic elements. Erick Garcia, Lighting Designer
A glowing blue neon at symbol (@) on a dark background with abstract, flowing blue light shapes and dynamic lighting effects scattered throughout the image.
I’m not a lighting designer, but I’ve run enough shows to know what delivers—and Color Force II Plus fixtures deliver. When I spec them in, it’s like giving the lighting team a gift. The output, the color blending, the punch—they just make everything look better. It’s one of those tools that instantly elevates the whole room.
It’s like giving the lighting team a gift! Steve LaRose – Senior project manager, FOH Productions
A glowing blue neon at symbol (@) on a dark background with abstract, flowing blue light shapes and dynamic lighting effects scattered throughout the image.
As a project manager, I’m closely involved in shaping the look and feel of every show and Color Force II Plus have become a go-to for good reason. Their flexibility and functionality are unmatched. Whether it’s lighting a stage backdrop, scenic elements, or creating bold color washes, the depth and richness these fixtures bring consistently elevate the entire experience.
Color Force II Plus have become a go-to for shaping the look and feel of every show Camden Gilbert –Project Manager, FOH Productions
A glowing blue neon at symbol (@) on a dark background with abstract, flowing blue light shapes and dynamic lighting effects scattered throughout the image.
I like them (Color Force II Plus). They have good color range, brightness, and a nice throw.
I like them (Color Force II Plus). They have good color range, brightness, and a nice throw. David Marshall – Freelance Lighting Designer
A glowing blue neon at symbol (@) on a dark background with abstract, flowing blue light shapes and dynamic lighting effects scattered throughout the image.

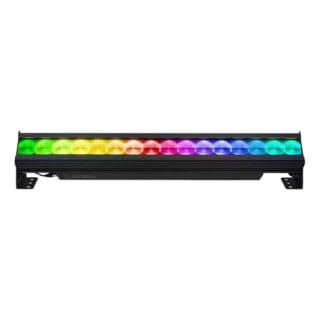

A black LED light bar displays multiple colors, including green, yellow, orange, red, purple, and blue in a gradient pattern. Perfect for video or audio setups, the light bar is mounted on two small metal brackets.
