Prolyte H30V 2-Way Corner

Clearance

Prolyte’s H30 Series truss is constructed of main tubes (48,3 x 3 mm) and diagonals (16 x 2 mm). Equipped with the CCS6 conical coupling system, the H30 truss is fast and easy to assemble. The H30 truss can be found in rental fleets all over the globe, where its optimum strength and flexible application possibilities makes it well loved and much used. H30 truss is available in triangular and square profiles and a range of corners and accessories.

Schedule a Demo

Accessories

A metal flat-head screw with a wide, sloped head and threaded body, often used in audio or lighting equipment, isolated on a white background.

Prolyte Baseplate Bolt

Prolyte baseplate bolt.

A cylindrical metal object with a stepped design and a rounded end, resembling a machined industrial component or spacer, ideal for use in specialized lighting setups, shown against a white background.

Prolyte Verto Baseplate Coupler

Prolyte Verto Coupler 600 for Baseplate.

A metallic, cylindrical audio connector with two large holes on opposite sides, slightly tapered in the middle, and featuring a smooth, shiny surface.

Prolyte Coupler

The Prolyte CCS6 conical coupler system is designed to offer a rigid and very strong connection between various truss types…

A metal hex bolt with a threaded shaft and hexagonal head, shown on a plain white background, commonly used in audio and lighting installations.

Prolyte Bolt

Prolyte Bolt. PLBMM12X028652 Bolt M12x28 – for use with PLCCS6652S Male Coupler 600 Half, Hole M12 for 30/40 Series PLBMM12X035 Bolt M12x35 8 8…

A silver hexagonal lock nut with a blue nylon insert, shown on a plain white background—ideal for audio, video, or lighting applications.

Prolyte Nut M8

Prolyte Nut M8, self-locking, DIN985…

A single metallic split lock washer, circular with a gap and slightly twisted ends, isolated on a white background with studio lighting.

Prolyte Washer M12 Spring

Prolyte Washer M12 Spring PLBMM12SW Prolyte Washer M12 Spring – for use with PLCCS6651 Female Conical Coupler, Hole M12 for 30/40 Series…

A single silver-colored R-clip, also known as an R-pin or hitch pin, made of bent metal wire with a straight section and a looped section, commonly used in audio and lighting setups, placed on a plain white background.

Prolyte Safety R-spring

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

A smooth, cylindrical metal object with a slightly tapered end and a small hole near the tip, commonly used in audio or lighting setups, photographed on a white background.

Prolyte Spigot

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

Prolyte H30V 2-Way Corner

Product Information

Advantages

  • Light weight system
  • Foolproof assembly
  • Optimised brace pattern for optimal force transfer
Alloy EN AW 6082 T6
Main Tubes 48 x 3 mm
Braces 16 x 2 mm
Coupling System CCS6

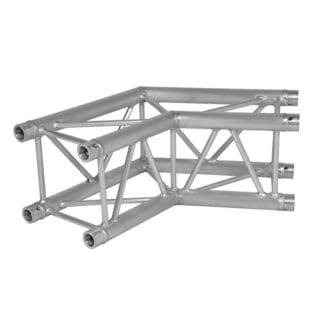

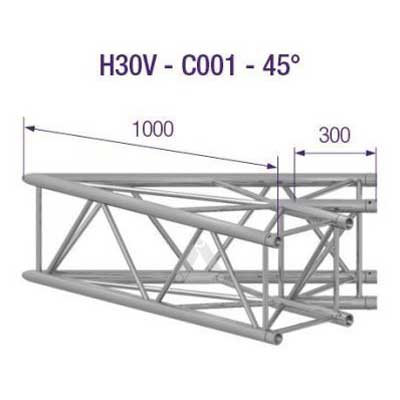

PLH30VC001 – 45º

H30V 3-Way Corner

PLH30VC002 – 60º

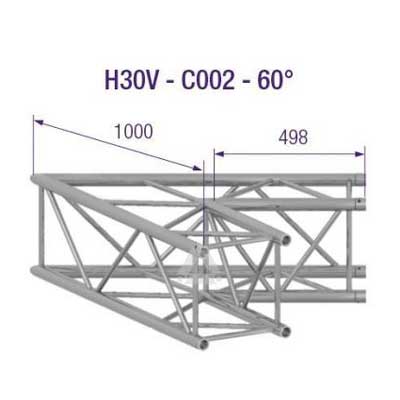

A 3D diagram of an H30V truss corner, model C002, angled at 60 degrees. The truss has a length of 1000 mm and a side length of 498 mm, with connecting rods forming a triangular structure.

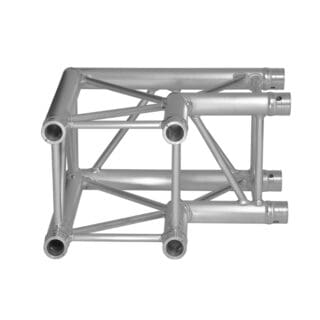

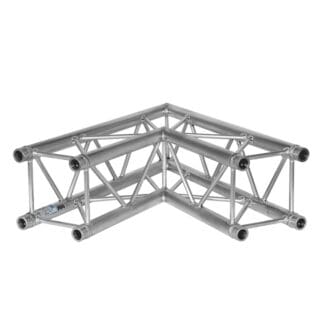

PLH30VC003 – 90º

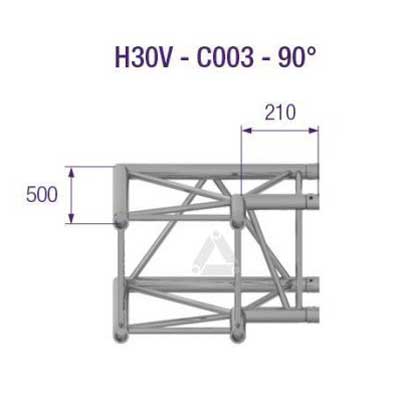

Technical drawing of an H30V-C003 truss corner, showing a 90-degree angle with labeled dimensions: 500 mm height and 210 mm width.

PLH30VC003 – 120º

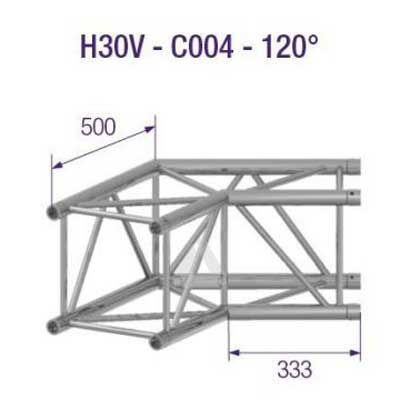

Diagram of a metal truss segment labeled H30V - C004 - 120°, showing a 120-degree angled connector with dimensions 500 mm and 333 mm marked.

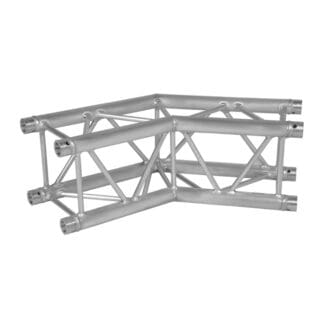

PLH30VC003 – 135º

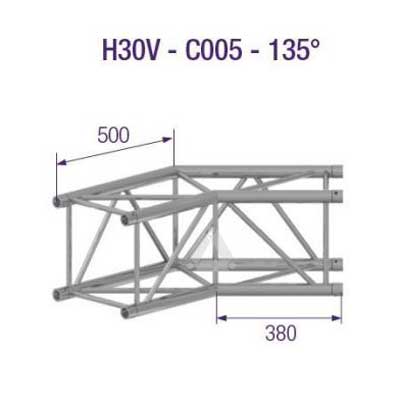

Diagram of a metal truss segment labeled H30V-C005-135°, showing diagonal supports and measurements: length 500 mm and width 380 mm. The truss features a 135-degree angle at one end.

PLH30VC003
A silver metal truss connector with four cylindrical ends and triangular support structures, designed for joining tubes in stage, audio, or lighting setups.
