Product

Prolyte Coupler

Clearance

The Prolyte CCS6 conical coupler system is designed to offer a rigid and very strong connection between various truss types of the multi purpose series. The conical shape and tapered pins create an optimal connection without the need of use force to assemble or disassemble. Only a hammer is needed to connect your trusses, offering remarkable assembly speed compared to other connection types.

Schedule a Demo

Accessories

A silver hexagonal lock nut with a blue nylon insert, shown on a plain white background—ideal for audio, video, or lighting applications.

Prolyte Nut M8

Prolyte Nut M8, self-locking, DIN985…

A single silver-colored R-clip, also known as an R-pin or hitch pin, made of bent metal wire with a straight section and a looped section, commonly used in audio and lighting setups, placed on a plain white background.

Prolyte Safety R-spring

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

A smooth, cylindrical metal object with a slightly tapered end and a small hole near the tip, commonly used in audio or lighting setups, photographed on a white background.

Prolyte Spigot

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

Prolyte Coupler

Product Information

* Note per truss connection you will require 4 of PLCCS6600, and 8 of PLCCS6603 and PLCCS6605 or PLCCS6604 and PLBMM8SN.

* Note 4 of each couplers (male or female) and bolts are needed per box corner side.

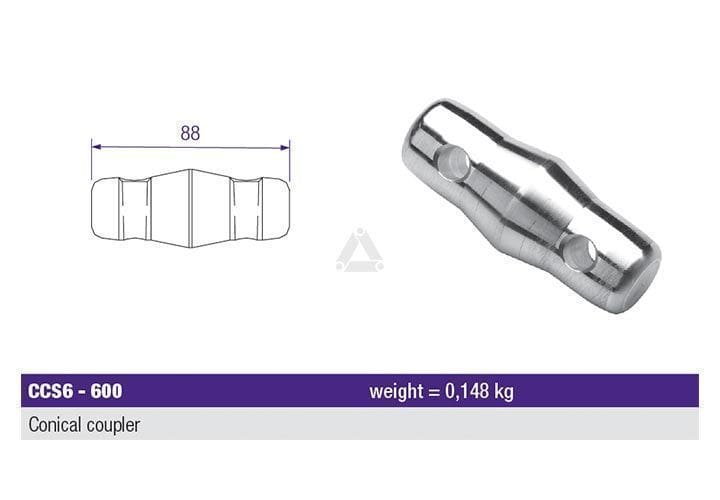

PLCCS6600 Conical Coupler for 30/40 Series

A conical metal coupler with two side holes, shown with a technical drawing and labeled dimensions of 88 mm length. Text indicates model CCS6-600, weight 0.148 kg.

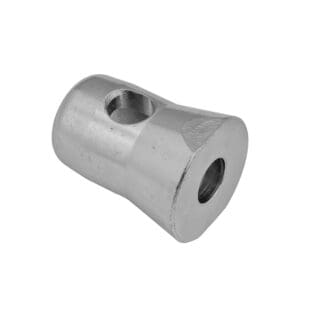

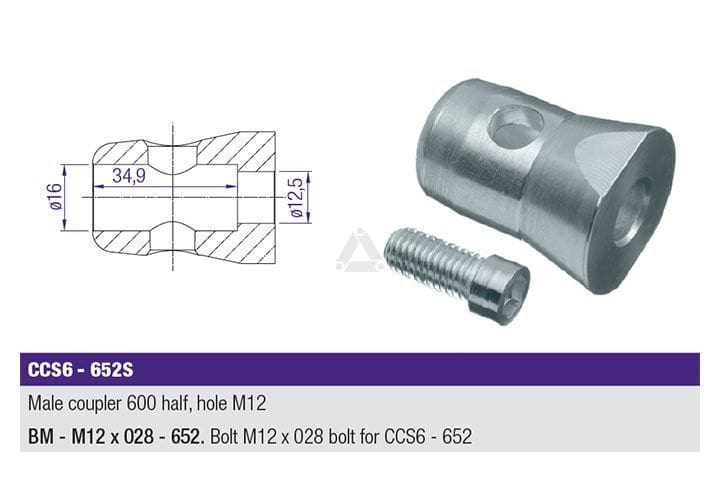

PLCCS6652D Male Coupler 600 Half, Hole M12 for 30/40 Series

Technical diagram and photo of a metal male coupler (CCS6 - 652S), with a hole for M12, and an M12 x 28 bolt beside it. Includes dimensions for reference. Text provides product specifications.

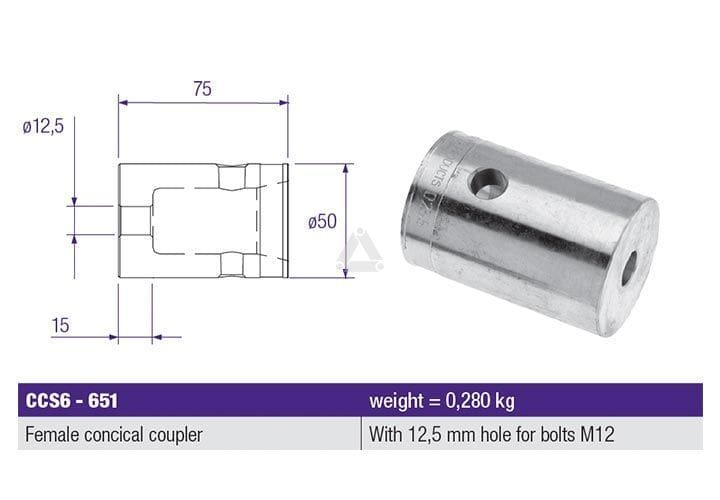

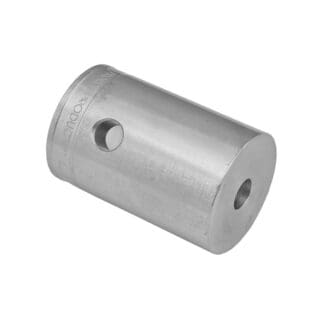

PLCCS6651 Female Conical Coupler, Hole M12 for 30/40 Series

Technical drawing and photo of a metal female conical coupler, CCS6-651, with a 12.5 mm hole for M12 bolts, 75 mm length, 30 mm diameter, and a weight of 0.28 kg. Dimensions and product specs are included.

PLCCS6600, PLCCS6651, PLCCS6652S

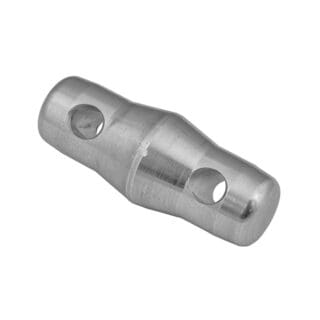

A metallic, cylindrical audio connector with two large holes on opposite sides, slightly tapered in the middle, and featuring a smooth, shiny surface.
