Prolyte X30V Square Truss Length

Clearance

Prolyte’s X30 truss is constructed of main tubes (51 x 2 mm) and diagonals (16 x 2 mm). Equipped with the CCS6 conical coupling system, the X30 truss is fast and easy to assemble.

Schedule a Demo

Accessories

A metal flat-head screw with a wide, sloped head and threaded body, often used in audio or lighting equipment, isolated on a white background.

Prolyte Baseplate Bolt

Prolyte baseplate bolt.

A cylindrical metal object with a stepped design and a rounded end, resembling a machined industrial component or spacer, ideal for use in specialized lighting setups, shown against a white background.

Prolyte Verto Baseplate Coupler

Prolyte Verto Coupler 600 for Baseplate.

A metallic, cylindrical audio connector with two large holes on opposite sides, slightly tapered in the middle, and featuring a smooth, shiny surface.

Prolyte Coupler

The Prolyte CCS6 conical coupler system is designed to offer a rigid and very strong connection between various truss types…

A metal hex bolt with a threaded shaft and hexagonal head, shown on a plain white background, commonly used in audio and lighting installations.

Prolyte Bolt

Prolyte Bolt. PLBMM12X028652 Bolt M12x28 – for use with PLCCS6652S Male Coupler 600 Half, Hole M12 for 30/40 Series PLBMM12X035 Bolt M12x35 8 8…

A silver hexagonal lock nut with a blue nylon insert, shown on a plain white background—ideal for audio, video, or lighting applications.

Prolyte Nut M8

Prolyte Nut M8, self-locking, DIN985…

A single metallic split lock washer, circular with a gap and slightly twisted ends, isolated on a white background with studio lighting.

Prolyte Washer M12 Spring

Prolyte Washer M12 Spring PLBMM12SW Prolyte Washer M12 Spring – for use with PLCCS6651 Female Conical Coupler, Hole M12 for 30/40 Series…

A single silver-colored R-clip, also known as an R-pin or hitch pin, made of bent metal wire with a straight section and a looped section, commonly used in audio and lighting setups, placed on a plain white background.

Prolyte Safety R-spring

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

A smooth, cylindrical metal object with a slightly tapered end and a small hole near the tip, commonly used in audio or lighting setups, photographed on a white background.

Prolyte Spigot

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

Prolyte X30V Square Truss Length

Product Information

Prolyte’s X30 truss is constructed of main tubes (51 x 2 mm) and diagonals (16 x 2 mm). Equipped with the CCS6 conical coupling system, the X30 truss is fast and easy to assemble. The X30 truss can be found in rental fleets all over the globe, where its low volume and flexible application possibilities makes it the ideal truss for exhibitions and low intensity rental jobs. X30 truss is available in ladder, triangular and square profiles and a range of corners and accessories.

  • Fast and easy assembly
  • Light weight system
  • World wide availability
  • Versatile application
  • Cross bracing
  • 4-point noding
Alloy EN AW 6082 T6
Main Tubes 51 x 2 mm
Braces 16 x 2 mm
Coupling System Verto, CrMo4

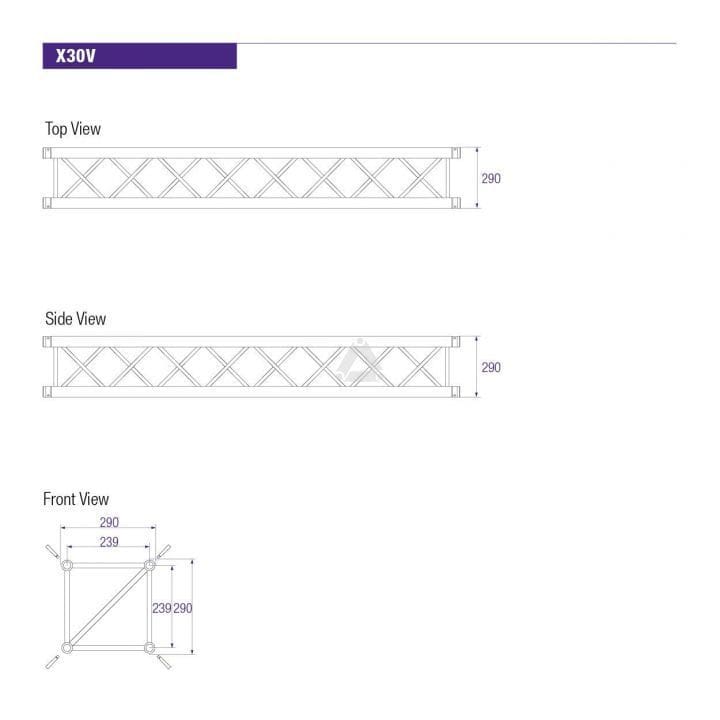

X30V Dimensions

Metres Feet Weight Product Code
0.25 0.82 5.95 lbs / 2.70 kg PLX30VL025
0.50 1.64 8.38 lbs / 3.80 kg PLX30VL050
0.71 2.33 10.58 lbs / 4.80 kg PLX30VL071
1.00 3.28 13.23 lbs / 6.00 kg PLX30VL100
1.50 4.92 18.20 lbs / 8.30 kg PLX30VL150
2.00 6.56 23.59 lbs / 10.70 kg PLX30VL200
2.50 8.20 28.22 lbs / 12.80 kg PLX30VL250
3.00 9.84 33.95 lbs / 15.40 kg PLX30VL300

Other Lengths available on request.

PLX30VL200, PLX30VL025, PLX30VL100, PLX30VL071, PLX30VL050, PLX30VL150

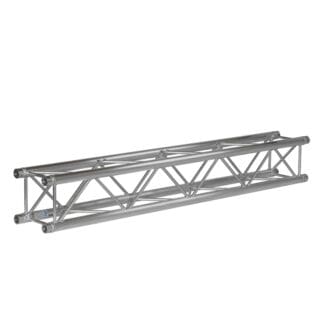

A silver aluminum truss structure with a rectangular shape, featuring diagonal and horizontal support beams, commonly used for stage lighting, audio, or event setups.
