Prolyte X30V 2-Way Corner

Clearance

The standard corners for Prolyte’s X30 trusses are available in a 2-way to 6-way connection, and with 45 to 120 degree angles, to create any structure you require. The standard corners offer optimum flexibility to complete your system to adapt to all kind of applications. The X30 truss and corners connect using the CCS6 conical coupling system.

Schedule a Demo

Accessories

A metal flat-head screw with a wide, sloped head and threaded body, often used in audio or lighting equipment, isolated on a white background.

Prolyte Baseplate Bolt

Prolyte baseplate bolt.

A cylindrical metal object with a stepped design and a rounded end, resembling a machined industrial component or spacer, ideal for use in specialized lighting setups, shown against a white background.

Prolyte Verto Baseplate Coupler

Prolyte Verto Coupler 600 for Baseplate.

A metallic, cylindrical audio connector with two large holes on opposite sides, slightly tapered in the middle, and featuring a smooth, shiny surface.

Prolyte Coupler

The Prolyte CCS6 conical coupler system is designed to offer a rigid and very strong connection between various truss types…

A metal hex bolt with a threaded shaft and hexagonal head, shown on a plain white background, commonly used in audio and lighting installations.

Prolyte Bolt

Prolyte Bolt. PLBMM12X028652 Bolt M12x28 – for use with PLCCS6652S Male Coupler 600 Half, Hole M12 for 30/40 Series PLBMM12X035 Bolt M12x35 8 8…

A silver hexagonal lock nut with a blue nylon insert, shown on a plain white background—ideal for audio, video, or lighting applications.

Prolyte Nut M8

Prolyte Nut M8, self-locking, DIN985…

A single metallic split lock washer, circular with a gap and slightly twisted ends, isolated on a white background with studio lighting.

Prolyte Washer M12 Spring

Prolyte Washer M12 Spring PLBMM12SW Prolyte Washer M12 Spring – for use with PLCCS6651 Female Conical Coupler, Hole M12 for 30/40 Series…

A single silver-colored R-clip, also known as an R-pin or hitch pin, made of bent metal wire with a straight section and a looped section, commonly used in audio and lighting setups, placed on a plain white background.

Prolyte Safety R-spring

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

A smooth, cylindrical metal object with a slightly tapered end and a small hole near the tip, commonly used in audio or lighting setups, photographed on a white background.

Prolyte Spigot

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

Prolyte X30V 2-Way Corner

Product Information

Advantages

  • Light weight system
  • Foolproof assembly
  • Optimised brace pattern for optimal force transfer
Alloy EN AW 6082 T6
Main Tubes 51 x 2 mm
Braces 16 x 2 mm
Coupling System CCS6

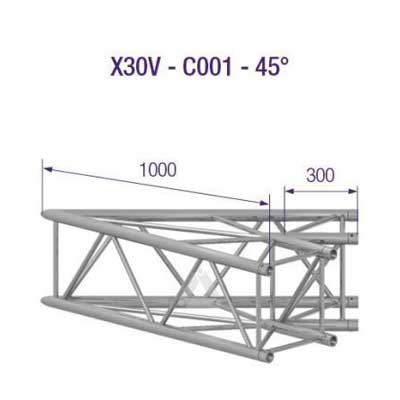

PLX30VC001 – 45º

A silver truss structure labeled X30V - C001 - 45° with dimensions showing 1000mm length and 300mm width. The truss is made of connected metal tubes arranged in a triangular prism shape.

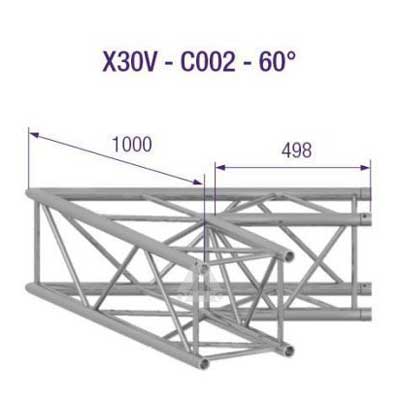

PLX30VC002 – 60º

A silver truss structure labeled X30V - C002 - 60° with dimensions: length 1000 mm and width 498 mm, shown with lines and arrows indicating measurements.

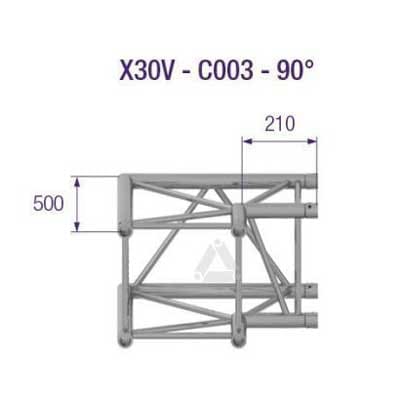

PLX30VC003 – 90º

Diagram of a metal truss corner piece labeled X30V - C003 - 90° with dimensions: 500 mm height and 210 mm width, shown in a side view.

PLX30VC004 – 120º

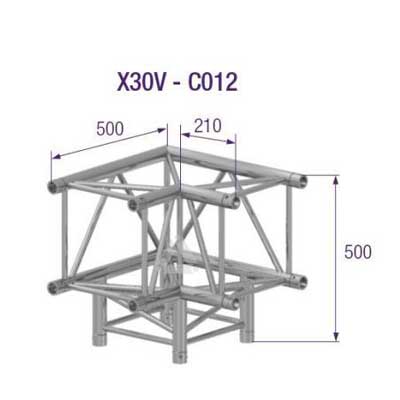

3D diagram of a metal truss structure labeled X30V - C012 with dimensions: 500 mm width, 500 mm height, and 210 mm inner spacing. Lines and arrows indicate measurements.

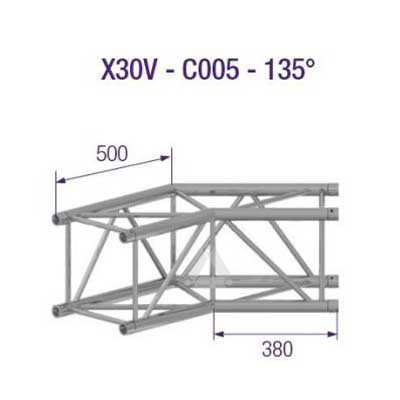

PLX30VC005 – 135º

Diagram of a metal truss segment labeled X30V - C005 - 135° with dimensions 500 mm length and 380 mm width, showing an angled connector with diagonal and horizontal supports.<

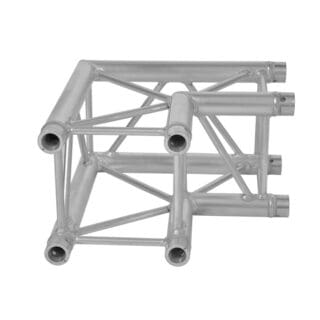

PLX30VC003

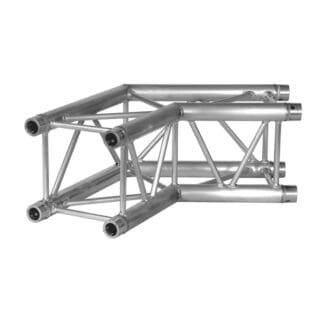

A metal truss corner piece with six cylindrical connectors, designed for structural support in stage, lighting, or event setups, shown against a white background.
