Studio One 100 T™
Discontinued
Product
Studio One 100 T™
This product has been discontinued effective March 2021. Please visit Studio One 100 for more information.

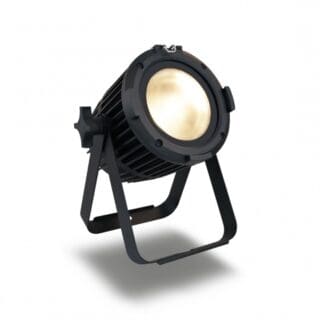

The new Chroma-Q® Studio One 100™ LED PAR is designed to deliver the highest quality of white light from an LED based fixture, for the most demanding applications.
Utilising core LED technology from the Chroma-Q® premium performance lighting range, the multi-purpose fixture is ideal for a wide range of environments and provides a powerful, creative lighting tool.
This fixture is also available as a RGBA version.
Key Features
- Extreme white outputs
- Choice of daylight, variable and tungsten white CCTs
- Extremely uniform wash
- Fully homogenised beam
- Superior build quality
- Defined 18° beam
- High CRI
- Camera friendly – Flicker free operation
- Floor, truss or wall mountable
- Convection cooled for silent running
- Theatrical grade dimming
Part Number: CHSONE100T, CHSONEW100T (White)
Accessories
Chroma-Q®
Egg Crate Louver for Color/Studio One
Egg Crate Louver For Color One 100X and Studio One. Available in black.
Chroma-Q®
Lens Kit Diffusion 36 & 50 Degree for Color/Studio One
Lens Kit Diffusion 36 & 50 Degree for Color/Studio One…
Chroma-Q®
Uploader II
The Uploader II was discontinued in November 2024. The Force replaces it. The Chroma-Q® Uploader II is a software…
Product Videos
Watch tutorials and use cases to see this product in action.
Chroma-Q Studio One 100™ White LED PAR
Chroma-Q Studio One 100™ White LED PAR
Studio One 100 T™
Product Information
Smooth, Homogenised Optics
The Studio One 100™ custom optical design and fully homogenised output provides a smooth, uniform and defined 18° beam.
Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.
Flicker Free Operation
The Studio One 100™ offers adjustable dimming frequencies to ensure flicker-free operation on cameras.
Multi-Purpose Workhorse Fixture
With the advanced feature set also including convection cooling for silent operation and a versatile mounting yoke, the Studio One 100™ is suitable for numerous TV, film, studio, exhibition & entertainment lighting applications – complementing the popular Chroma-Q® Studio Force™ and Studio Force Phosphor™ LED fixtures ranges.
Convenient Remote-Controlled Operation
With a simple to use Infra-Red remote control included with each fixture, you can be up and running within minutes without the requirement of a lighting console —saving time and labour with instant access to pre-set colour temperatures, on/off, dimming and effects.
Compatible With Industry-Standard Accessories
To enable maximum flexibility with users’ existing production inventory, the Studio One 100™ accepts industry-standard 6.25″ accessories such as egg crates, barndoors and top hats.
| Tungsten White | |
| Product Code | CHSONE100T |
| Net Dimensions | 214mm x 267mm x 232mm / 8.5″ x 10.5″ x 9″ |
| (Full Open Yoke) | |
| Net Weight | 3.8kg / 8.5lb |
| Shipping Dimensions | 406mm x 228mm x 292mm / 16″ x 9″ x 11.5″ |
| Shipping Weight | 5.5kg / 12lb |
| Power Supply | Built-in |
| Power Input Rating | 100-240V AC 50-60Hz 125VA |
| Power Factor | 0.5 |
| Power Consumption | 60W @ 120V AC; 61W @ 230V AC |
| Idle Power Consumption | 3W @ 120V AC; 5W @ 230V AC |
| Typical Power & Current | Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%. |
| Power Connectors In/Out | powerCON |
| Data Connectors In/Out | XLR 5-pin |
| Control Protocol | ANSI E1.11 USITT DMX 512-A |
| Cooling System | Convection |
| Operating Temperature | 0°C to 40°C |
| Construction | Cast machined aluminium |
| Colour | Black (custom colours available on request) |
| Built-In Hardware | Split Yoke, 6.25″ Accessory Holder |
| IP Rating | IP20 |
| Approvals | CISPR 15/EN55015& EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598 |
| Tungsten White | |
| LED Engines | 1 |
| LEDs Per Engine | Warm White |
| Control Modes | 1 channel DIMMER, Master, Slave |
| Dimming Curve | Theatrical |
| Wireless Control | On/Off, Fade In, Fade Out |
| Hot Lumen Output (Combined) | 2,200 |
| Optics | Fully homogenised |
| Beam Angle | 18° |
| Beam Distribution | Symmetrical direct illumination |
| CCT | 3,000K (+/- 200K) |
| CRI | 82 |
| Lamp Life | L70 at 50,000 hours |
- Brochure Studio One 100 T™ Brochure (English)
- Spec Sheet Studio One 100 T™ Spec Sheet
- User Manual Studio One 100 T™ User Manual
- Quick Start Guide Studio One 100 T™ Quick Start Guide
- Software Studio One 100 T™ Software
- IES Studio One 100 T™ IES
- Certificates Studio One 100 T™ Declaration of Conformity
- Certificates Studio One 100 T™ Declaration of Origin

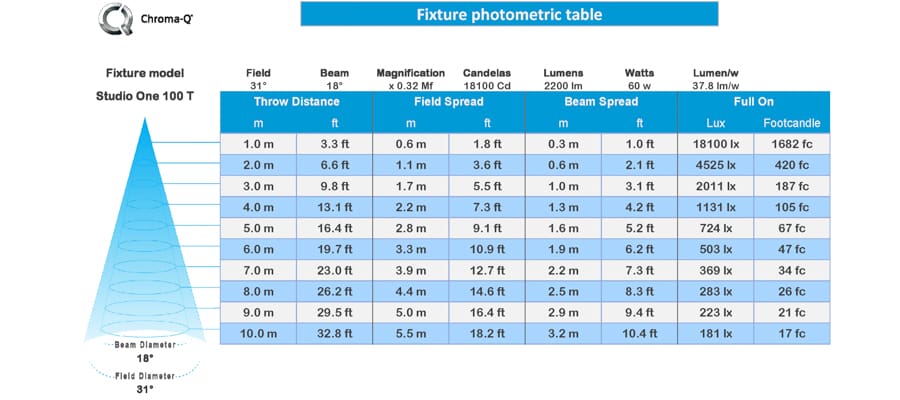

- IES Studio One 100 T™ Photometric Table
- CAD 2D/3D Studio One 100 T™ 2D Symbols DWG
- CAD 2D/3D Studio One 100 T™ 3D Symbols DWG
- Spec Sheet Studio One 100 T™ Architectural Specifications
- CAD 2D/3D Chroma-Q VectorWorks Symbols
Disclaimer: Chroma-Q operates a policy of continuous development. Apex reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer’s web page for the most up-to-date specifications and product details chroma-q.com.
