Chroma-Q®

Studio One 100 V™

Discontinued

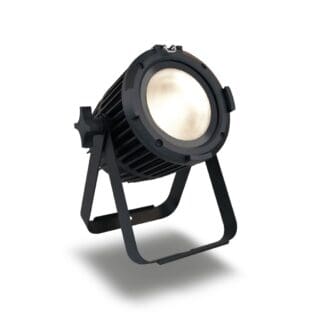

The new Chroma-Q® Studio One 100™ LED PAR is designed to deliver the highest quality of white light from an LED based fixture, for the most demanding applications.

Utilising core LED technology from the Chroma-Q® premium performance lighting range, the multi-purpose fixture is ideal for a wide range of environments and provides a powerful, creative lighting tool.

This fixture is also available as an RGBA version.

Key Features

  • Extreme white outputs
  • Choice of daylight, variable, and tungsten white CCTs
  • Extremely uniform wash
  • Fully homogenised beam
  • Superior build quality
  • Defined 18° beam
  • High CRI
  • Camera friendly – Flicker free operation
  • Floor, truss, or wall mountable
  • Convection cooled for silent running
  • Theatrical grade dimming

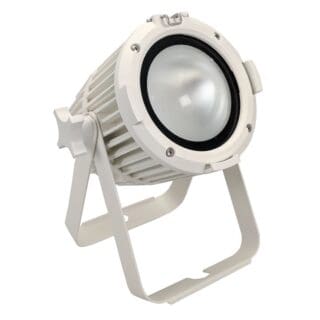

Part Numbers: CHSONE100V, CHSONE100VW (White)

Schedule a Demo

Accessories

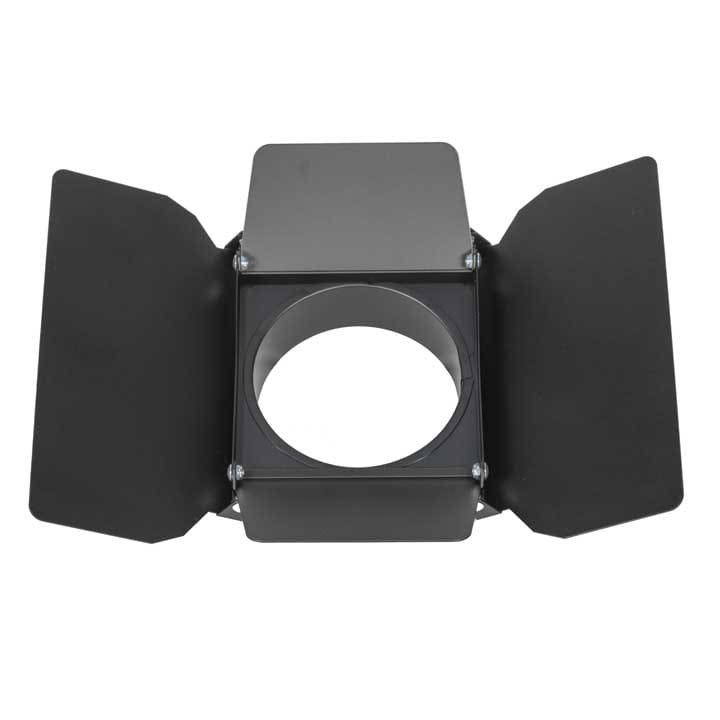

A black metal barn door lighting modifier with adjustable flaps, designed to control the direction and spread of light from a studio or video stage light.

Chroma-Q®

Barndoor for Color/Studio One

Black barndoor for Color One 100X and Studio One…

Lighting Accessories

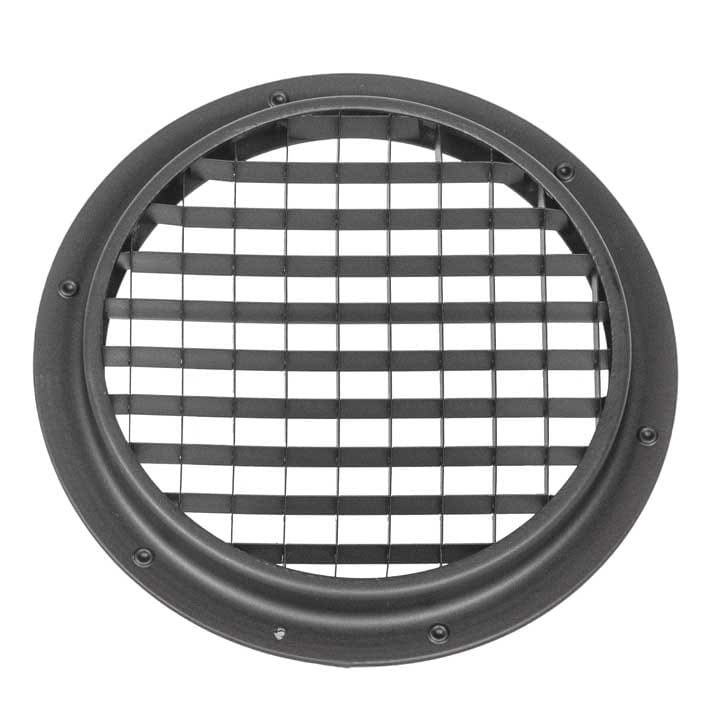

Round black metal vent cover with a grid pattern in the center, ideal for audio or lighting setups, surrounded by a solid circular frame with small screw holes around the edge.

Chroma-Q®

Egg Crate Louver for Color/Studio One

Egg Crate Louver For Color One 100X and Studio One. Available in black.

Lighting Accessories

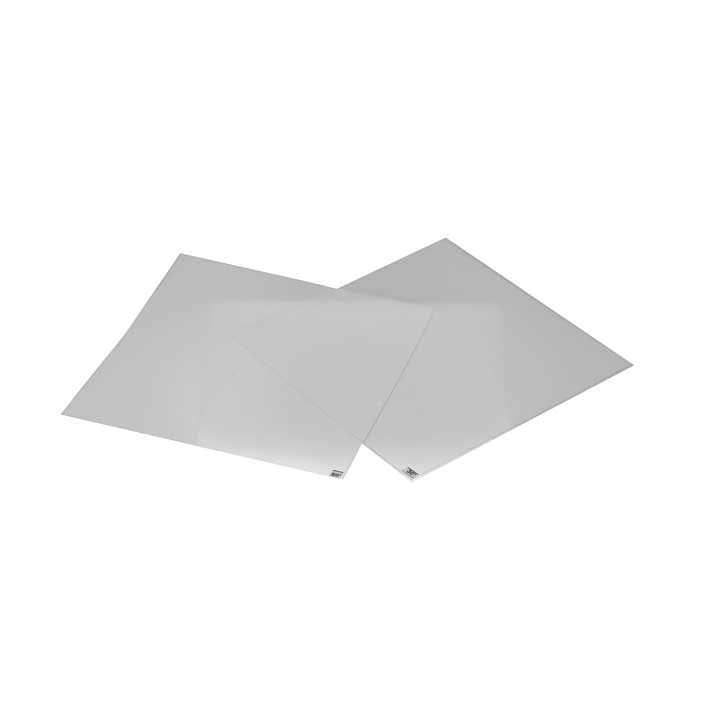

Three transparent plastic sheets are overlapping each other on a plain white background, creating an effect that plays with lighting and subtle reflections.

Chroma-Q®

Lens Kit Diffusion 36 & 50 Degree for Color/Studio One

Lens Kit Diffusion 36 & 50 Degree for Color/Studio One…

Lighting Accessories

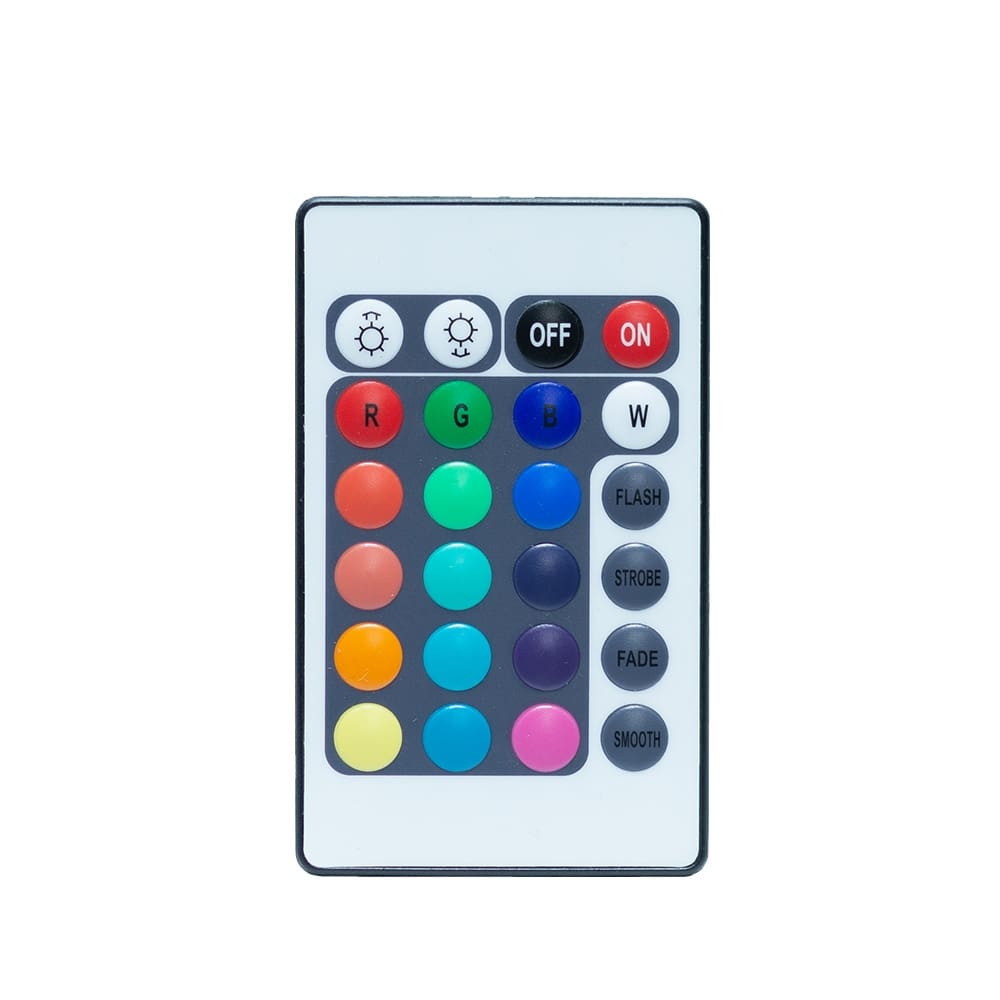

A multi-colored remote control for video and lighting, featuring buttons for colors, power, brightness, and lighting effects like flash, strobe, fade, and smooth, all set against a white background.

Chroma-Q®

Remote IR Wireless for Color/Studio One

Remote IR Wireless for Color/Studio One…

Lighting Accessories

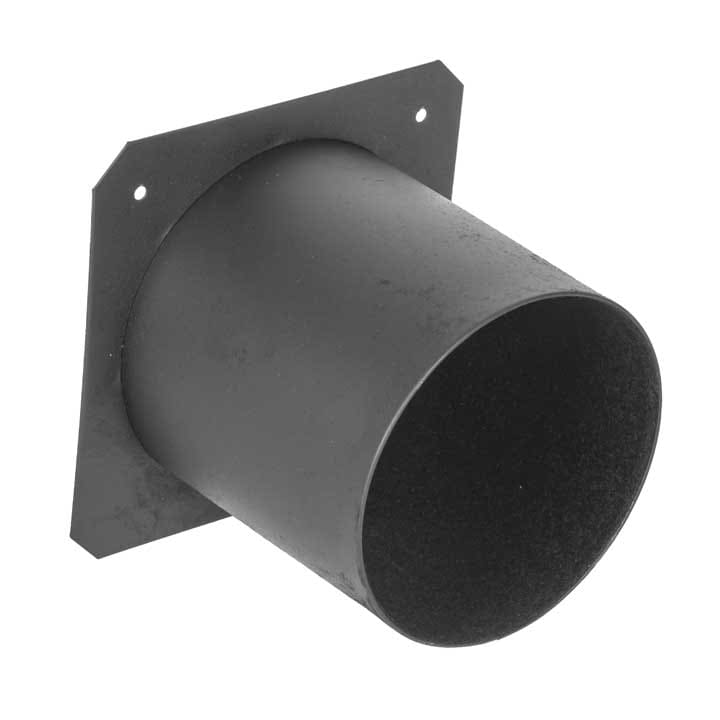

A black metal round duct connector with a short cylindrical tube, ideal for audio or lighting setups, attached to a square mounting plate featuring two screw holes.

Chroma-Q®

Top Hat for Color/Studio One

Top Hat for Color One 100X and Studio One. Available in black.

Lighting Accessories

A Chroma-Q The Force lighting control device featuring a touchscreen display with various settings icons, enclosed in a dark gray rectangular case with the Chroma-Q logo and The Force text on the front.

Chroma-Q®

The Force

“Chroma-Q The Force”, the versatile multi-tool designed for the dedicated lighting professional. This robust device streamlines the firmware update process…

Lighting Accessories

Lighting Control

Chroma-Q®

Uploader II

The Uploader II was discontinued in November 2024. The Force replaces it.  The Chroma-Q® Uploader II is a software…

Product Videos

Watch tutorials and use cases to see this product in action.

Chroma-Q Studio One 100™ White LED PAR

Studio One 100 V™

Product Information

Smooth, Homogenised Optics
The Studio One100™ custom optical design and fully homogenised output provides a smooth, uniform, and defined 18° beam.

Theatrical Grade Dimming
Theatrical grade dimming emulates the extremely smooth dimming curve of tungsten fixtures.

Flicker Free Operation
The Studio One 100™ offers adjustable dimming frequencies to ensure flicker-free operation on cameras.

Multi-Purpose Workhorse Fixture
With the advanced feature set also including convection cooling for silent operation and a versatile mounting yoke, the Studio One 100™ is suitable for numerous TV, film, studio, exhibition & entertainment lighting applications – complementing the popular Chroma-Q® Studio Force™ and Studio Force Phosphor™ LED fixtures ranges.

Convenient Remote-Controlled Operation
With a simple-to-use Infra-Red remote control included with each fixture, you can be up and running within minutes without the requirement of a lighting console —saving time and labour with instant access to pre-set colour temperatures, on/off, dimming, and effects.

Compatible With Industry-Standard Accessories
To enable maximum flexibility with users’ existing production inventory, the Studio One™ accepts industry-standard 6.25″ accessories such as egg crates, barndoors, and top hats.

Variable White
Product Code CHSONE100V
Net Dimensions 214mm x 267mm x 232mm / 8.5″ x 10.5″ x 9″
(Full Open Yoke)
Net Weight 3.8kg / 8.5lb
Shipping Dimensions 406mm x 228mm x 292mm / 16″ x 9″ x 11.5″
Shipping Weight 5.5kg / 12lb
Power Supply Built-in
Power Input Rating 100-240V AC 50-60Hz 125VA
Power Factor 0.5
Power Consumption 60W @ 120V AC; 61W @ 230V AC
Idle Power Consumption 3W @ 120V AC; 5W @ 230V AC
Typical Power & Current Measurements done with all LEDs at maximum intensity. Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
Power Connectors In/Out powerCON
Data Connectors In/Out XLR 5-pin
Control Protocol ANSI E1.11 USITT DMX 512-A
Cooling System Convection
Operating Temperature 0°C to 40°C
Construction Cast machined aluminium
Colour Black (custom colours available on request)
Built-In Hardware Split Yoke, 6.25″ Accessory Holder
IP Rating IP20
Approvals CISPR 15/EN55015& EN61547, FCC Part 15 Subpart B:2012 / ICES-003:2012, CSA C22.2, UL 1573, IEC 60598
Variable White
LED Engines 1
LEDs Per Engine Warm White
Cold White
Control Modes 2 channels CTI, 2 channels WW CW, Master, Slave
Dimming Curve Theatrical
Wireless Control On/Off, Fade In, Fade Out
Hot Lumen Output (Combined) 2,100
Optics Fully homogenised
Beam Angle 18°
Beam Distribution Symmetrical direct illumination
CCT 3,000K – 6,100K
CRI 86
Lamp Life L70 at 50,000 hours

Optional

Included

  • CHCONEREMOTE: Remote IR Wireless for Color/Studio One
  • Colour Frame

Studio One 100 V™

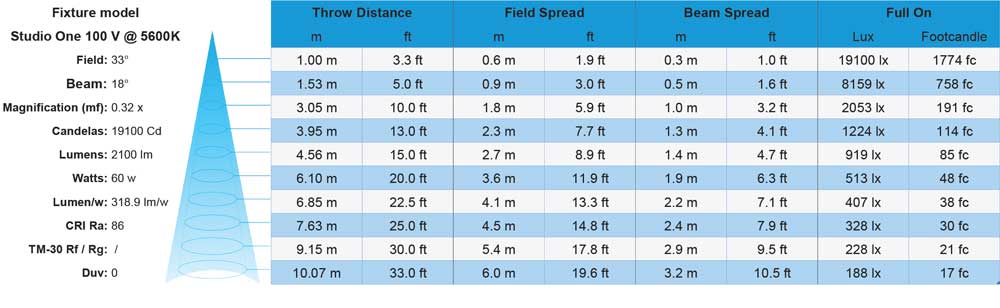

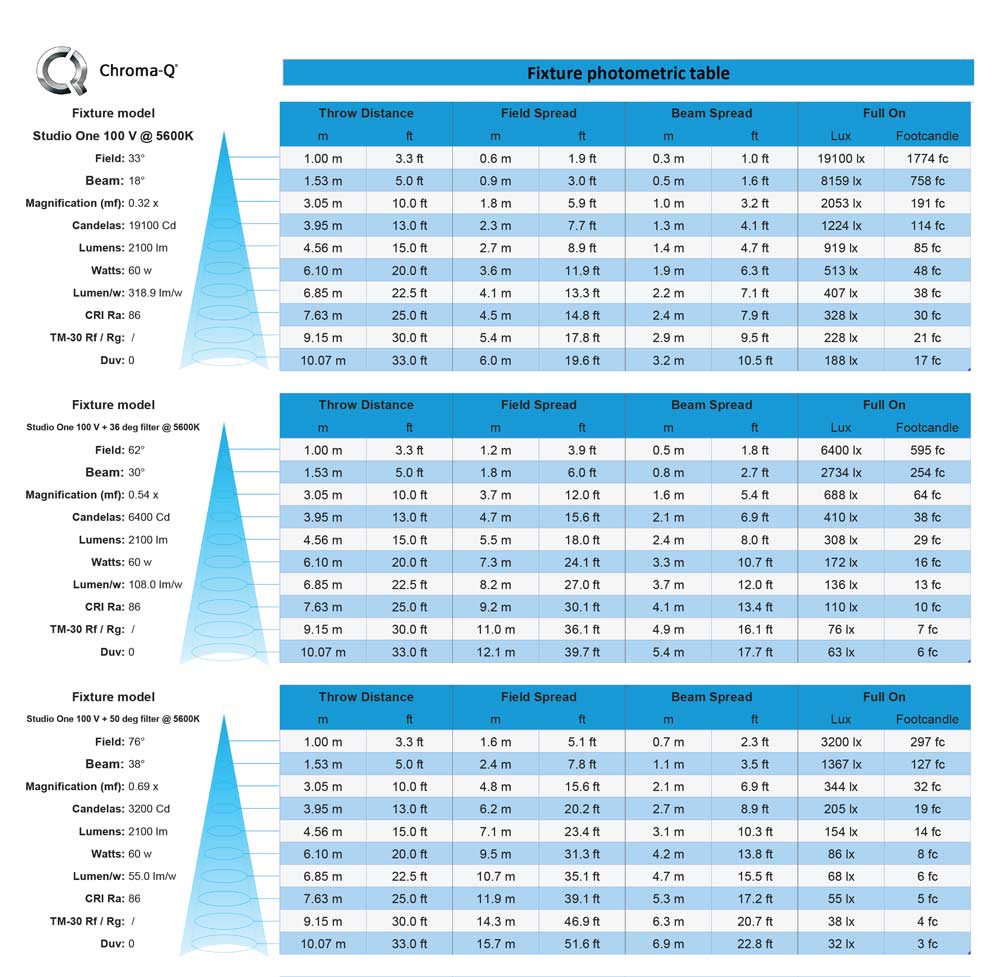

Photometrics Studio One 100

Photometrics Studio One 100

CHSONE100V, CHSONE100VW

Disclaimer: Chroma-Q operates a policy of continuous development. Apex reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer’s web page for the most up-to-date specifications and product details chroma-q.com.

For support, visit: chroma-q.com/support
