PROLIGHTS

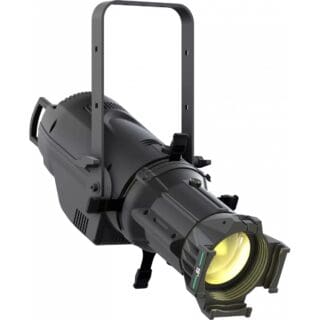

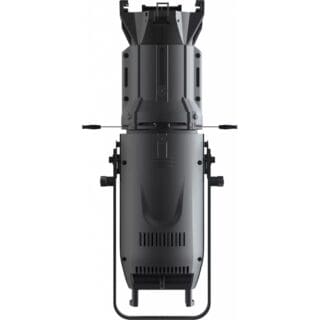

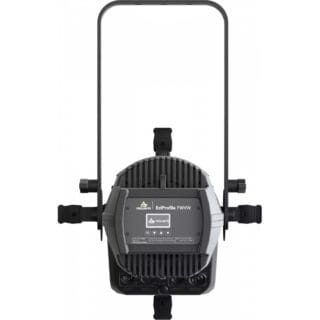

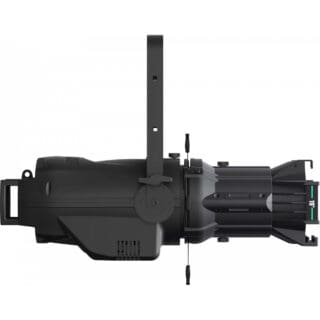

EclProfile FWVW

Best Seller

High-quality Variable White LED ellipsoidal, with linear CCT 2,700 K – 5,600 K

EclProfile FWVW is the Variable White version of the new generation of Ecl Profile LED ellipsoidals, offering linear CCT control  from 2,700 K to 5,600 K.

The EclProfile FWVW has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on whites, offering a superior evenness and crisp focus of the new EclProfile range.

The LED source  has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.

Schedule a Demo

Accessories

PROLIGHTS

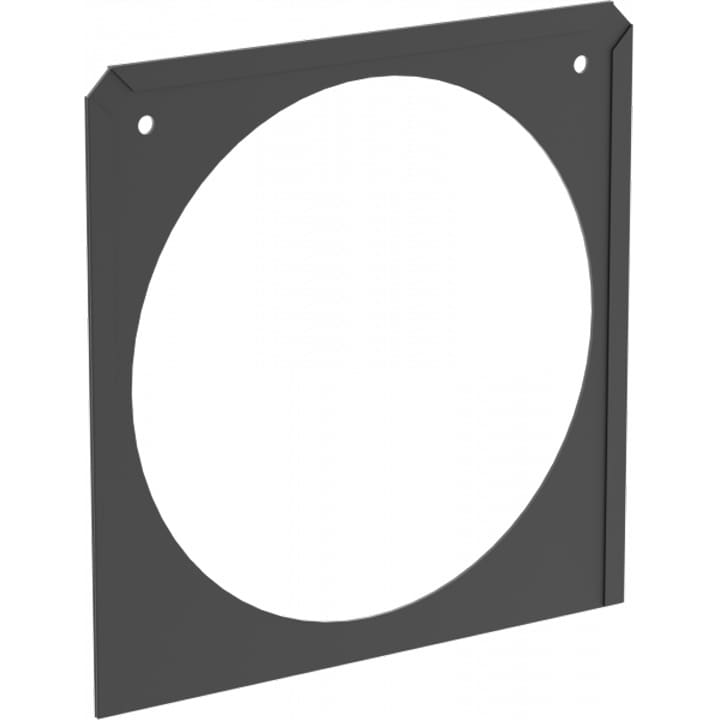

ECL Profile Static Lens Tube Gel Frames for EclProfile PRL lens barrel

Gel filter frame for ECL Profile PRL lens barrel.

Clamps, Adapters and Accessories

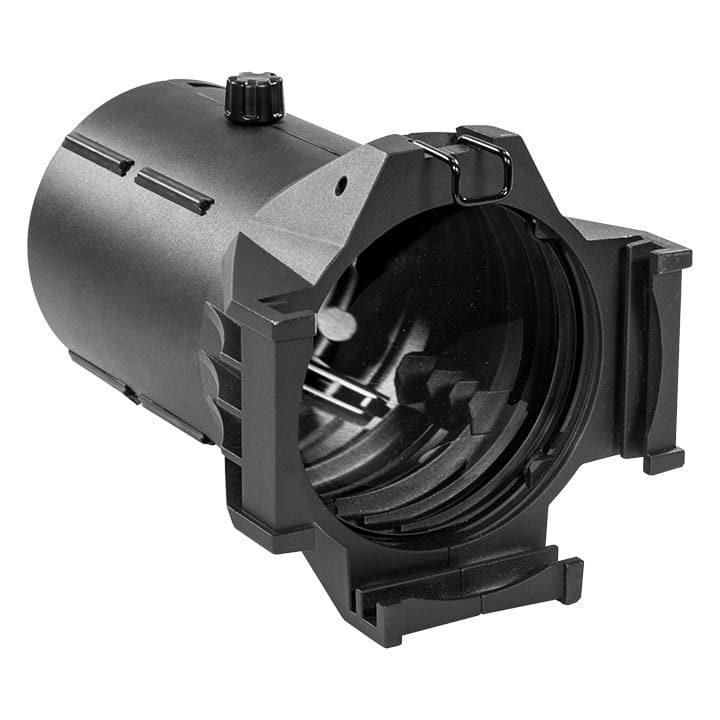

A black cylindrical stage lighting fixture with an open front and mounting brackets, viewed at an angle showing its inner lens and adjustment knob on top—perfect for professional lighting setups in audio or video productions.

PROLIGHTS

EclProfile FS Lens Tube

PROLIGHTS EclProfile FS Lens Tube.

Clamps, Adapters and Accessories

Product Videos

Watch tutorials and use cases to see this product in action.

PROLIGHTS EclProfile FW

EclProfile FWVW

Product Information

Main Features:

  • Linear CCT control 2,700 K – 5,600 K.
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30).
  • Silent operation and compatible with industry standard accessories.

LIGHT SOURCE

  • Source: 91x3W high-power white LED
  • CCT: from 2,700K to 5,600
  • Luminous flux: (26° only TU) 3’696 lm; (26° only DY) 4’406 lm; (26°) 7’951 @full
  • Lux: (26° only TU) 1’289 lx; (26° only DY) 1’524 lx; (26°) 2’759lx @5 m full
  • CRI: (only TU) 97; (only DY) 97,4; (@full) 95,4
  • R9: (only TU) 91; (only DY) 96,2; (@full) 86,4
  • TLCI: (only TU) 98; (only DY) 98; (@full) 98
  • TM30 Rf: (only TU) >95,5; (only DY) >91,7; (@full) >93,2
  • TM30 Rg: (only TU) <102,4; (only DY) <100,8; (@full) <103,2
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°°
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: manual
  • Other: see available accessories

COLOUR SYSTEM

  • Colour mixing: warm white + cold white

DYNAMIC EFFECTS

  • Shutter system: 3 layers blades system and fast rehabilitation of blade in case of out of frame blade
  • Gobo size: B, outer: 86 mm – image: 64,5 mm – thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HIGH mode, AUTO mode and SILENT mode fan management

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB – DMX interface (UPBOXPRO/UPBOX2) not included
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 – 25 Hz, electronic
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

  • Mains power supply: 100-240V – 50/60Hz
  • Max power consumption: 265W
  • Standby power: 6.3W
  • Output (at 230V): 12 units on a single power line
  • Power factor: 0,97
  • Inrush current: ＜30A @115VAC /＜50A @230VAC

PHYSICAL

  • IP rating: 20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 265x259x540mm / 10.43”x10.2”x21.26”
  • Weight: 7,3kg / 16.09lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

  • 1 x ECLFWVW
  • 1 x 1,5 meters power cable (BARE END – NEUTRIK POWERCON TRUE1 IP65)
  • User Manual

To learn more about Photometrics, Software & Certificates, click here.

ECLFWVWBK

Disclaimer: PROLIGHTS reserves the right to make changes and improvements to any of the products described on this website without prior notice. Specifications are subject to change without notice. Please refer to the manufacturer’s web page for the most up-to-date specifications and product details. prolights.it.

For additional downloads and support, visit: prolights.it/support

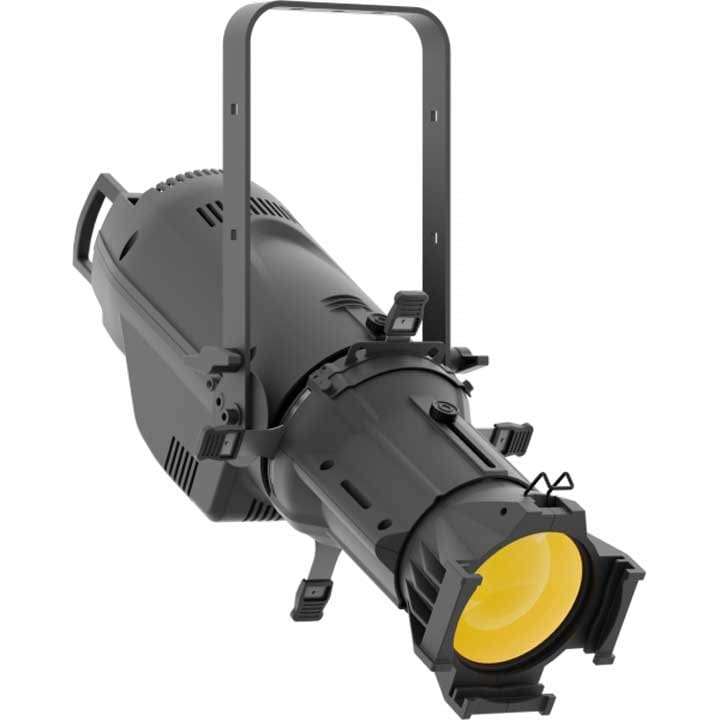

A black stage spotlight with a yellow light, mounted on a metal bracket, designed for professional theatrical, video, or event lighting.

Connect

See this product in action

Schedule a Demo

You May Also Like

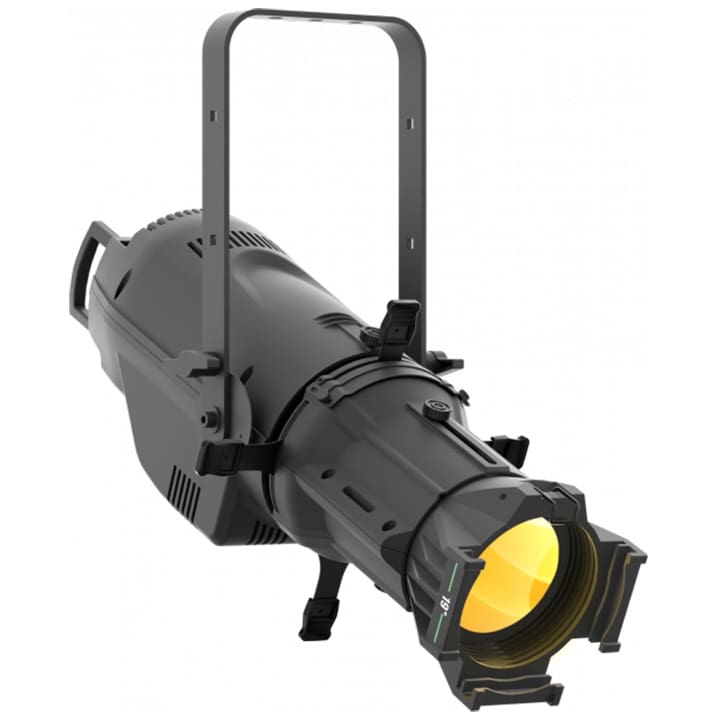

A black stage spotlight with adjustable barn doors and a yellow light filter, designed for professional lighting setups, is mounted on a metal bracket for hanging or positioning.
A black stage spotlight with adjustable barn doors and a yellow light filter, designed for professional lighting setups, is mounted on a metal bracket for hanging or positioning.

EclProfile CT+

LED Fixtures

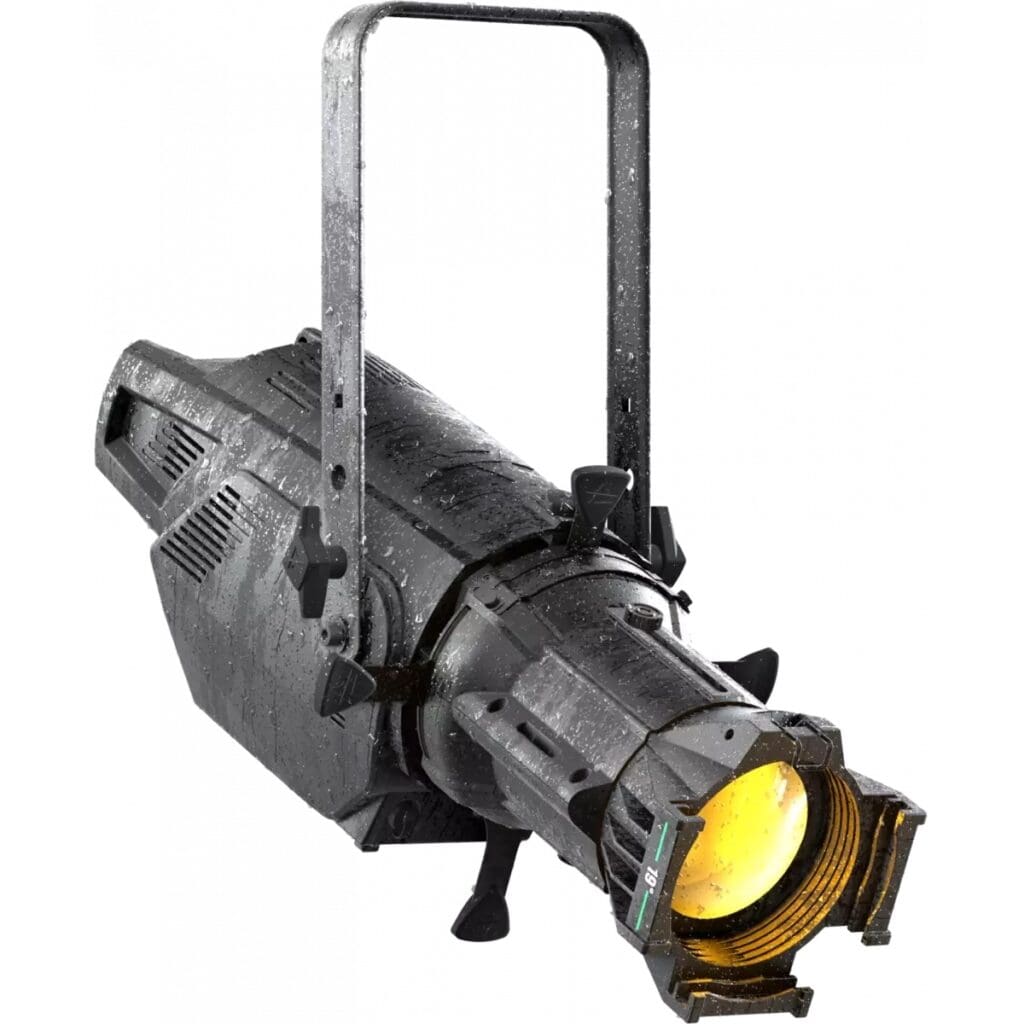

A black stage spotlight with a cylindrical body and a yellow-tinted lens, mounted on a metal bracket handle, typically used in theatrical lighting or concert lighting.
