Prolyte Box Corner

Clearance

Box corners are the ultimate flexible solution for rental purposes, offering 2-way to 6-way corner connection within one unit.

Schedule a Demo

Accessories

A metallic, cylindrical audio connector with two large holes on opposite sides, slightly tapered in the middle, and featuring a smooth, shiny surface.

Prolyte Coupler

The Prolyte CCS6 conical coupler system is designed to offer a rigid and very strong connection between various truss types…

A metal hex bolt with a threaded shaft and hexagonal head, shown on a plain white background, commonly used in audio and lighting installations.

Prolyte Bolt

Prolyte Bolt. PLBMM12X028652 Bolt M12x28 – for use with PLCCS6652S Male Coupler 600 Half, Hole M12 for 30/40 Series PLBMM12X035 Bolt M12x35 8 8…

A single metallic split lock washer, circular with a gap and slightly twisted ends, isolated on a white background with studio lighting.

Prolyte Washer M12 Spring

Prolyte Washer M12 Spring PLBMM12SW Prolyte Washer M12 Spring – for use with PLCCS6651 Female Conical Coupler, Hole M12 for 30/40 Series…

A single silver-colored R-clip, also known as an R-pin or hitch pin, made of bent metal wire with a straight section and a looped section, commonly used in audio and lighting setups, placed on a plain white background.

Prolyte Safety R-spring

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

A smooth, cylindrical metal object with a slightly tapered end and a small hole near the tip, commonly used in audio or lighting setups, photographed on a white background.

Prolyte Spigot

Prolyte Spigot pins are used to secure the conical coupler in its position. Like the conical coupler, the spigot pins…

Prolyte Box Corner

Product Information

Advantages

  • Special extruded profile for optimum strength
  • Bolted corner cubes to avoid heat affected zones
  • Flexible in use

* Note 4 of each couplers (male or female) and bolts are needed per box corner side.

Prolyte provides as much technical specifications as possible to help you decide if this type of equipment is fit for the job. Boxcorners are always part of a structure. Their strength and capacity depend on the size and height of the structure. For help please contact us.

PLBOX30V0

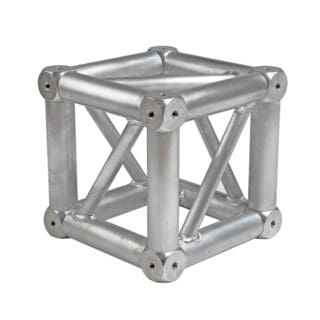

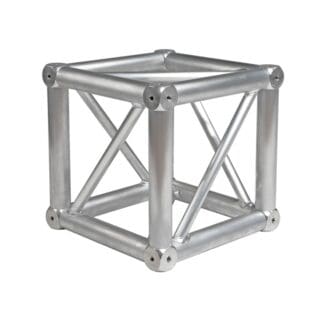

A metallic cube made of cylindrical rods connected at the corners, with diagonal rods reinforcing each face, creating a geometric, industrial structure ideal for creative lighting setups.
